Electric Power Steering (EPS) uses an electric motor to assist the operation of the steering wheel. Compared to the conventional hydraulic assist system, EPS improves fuel efficiency because it does not require an engine-powered oil pump. Additionally, EPS is indispensable for advanced driver assistance such as Autonomous and Lane Keeping Assist, which can be precisely controlled by an electric motor.

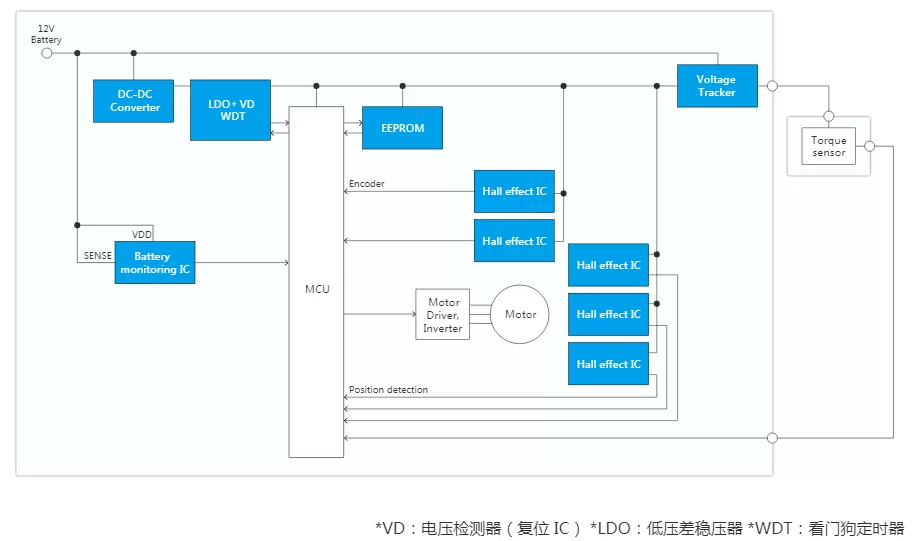

ABLIC offers ICs ideal for EPS motors that support “A” (Autonomous) in CASE. ABLIC offers a comprehensive range of products: such as ZCL™ Hall effect ICs which operate ideally in BLDC motors, high-accuracy Voltage Trackers for torque sensor power supplies, LDOs with built-in watchdog timers for monitoring MCUs, and battery monitoring ICs that monitor 12V auxiliary batteries for abnormal voltages.

DC-DC converter(Switching regulator):

 S-19914/5——---36V input, low noise, available in the industry's smallest package. Contributes to fewer and more compact external parts.

Watchdog Timer:

S-1951x——With reset and LDO regulator functions. Current consumption of 3.0μA.

Battery Monitoring IC(Voltage detector):

S-19113——Provides undervoltage monitoring. Built-in SENSE Pin reverse connection protection circuit. Current consumption of 0.6μA.

Voltage Tracker:

S-19720——The industry's lowest offset voltage of ±5mV. Available in an ultra compact (2.46 x 1.96mm) package. Current consumption during power-off of 4μA.

Hall effect IC(Magnetic sensor IC):

S-57TZ S——ZCL™ Hall effect ICs are perfect for BLDC motor control, creating stable BLDC motor control over a wide temperature range.

S-57RB S ——Bipolar Hall effect Latch ICs with a thin and small package. The thin package contributes to thinner BLDC motors.

EEPROM:

S-25Axxx (SPI) 、S-93Axx (3-wire)、S-93Sxx (3-wire)——Serial EEPROM. Built-in data protection functions.
