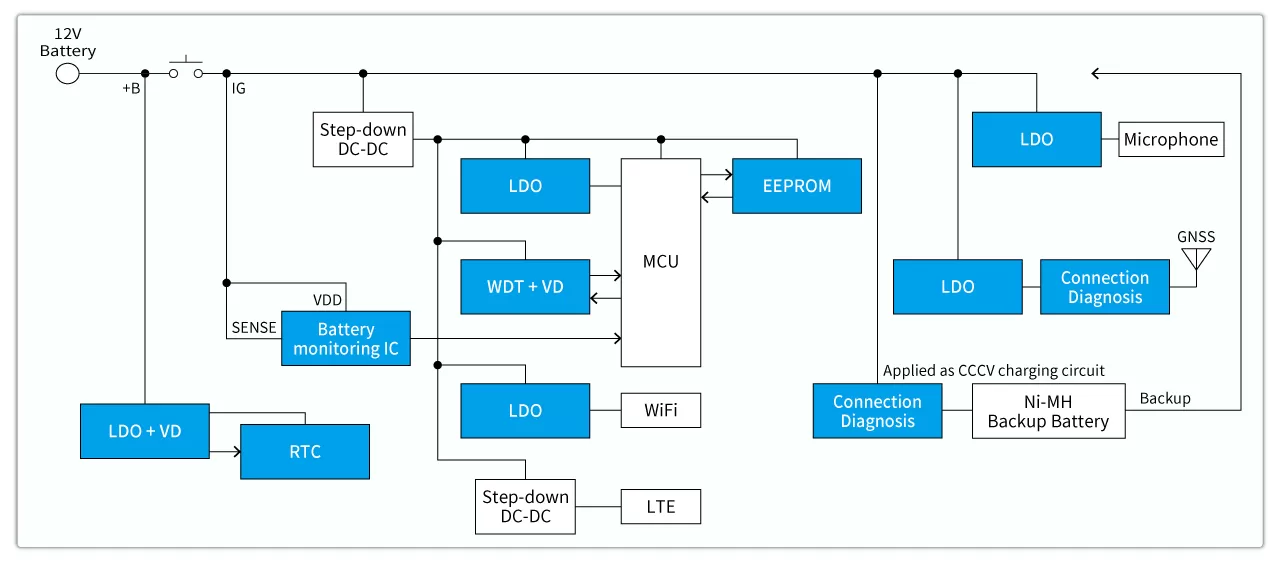

A Telematics Control Unit (TCU) is an automotive ECU handling bidirectional communications between a vehicle and the outside world. A TCU enabling V2X (Vehicle-to-Everything) communications is essential in a connected car. TCU-equipped vehicles can provide functions such as emergency call (eCall), which is mandatory in Europe, OTA (Over the Air), which is used for maintenance and information updates, receiving traffic information and tracking stolen vehicles.

Connection Diagnosis ICs: with a current monitor function

S-19700/1——Used for diagnosing GNSS antenna connections. An LDO regulator IC capable of detecting a variety of connection faults. It can also be used for backup battery charging circuits.

S-19680——Used for diagnosing GNSS antenna connections. Detects short and open circuits and can output alarm signals.

LDO Regulator:

S-19246——Powers WiFi. 10V input, 2A output current. Built-in soft start function.

S-19255——5.5V input, 300mA output current, PSRR 80dB. Available in an ultra compact (1.0 x 1.0mm) package. 0.1μF input capacitors can be used.

S-19212——Powers the microphone. The output voltage can be set between 2.5 to 16V.

S-19310——Powers and monitors the real-time clock. Industry’s lowest current consumption of 2.2μA. With reset function.

Watchdog Timer:

S-19400/1——Industryʼs top class super-low current consumption 3.8μA. With reset function. Available in 2.0 x 3.0mm package.

Battery Monitoring IC:

S-19113——Provides undervoltage monitoring. Built-in SENSE Pin reverse connection protection circuit. Current consumption of 0.6μA.

Real-Time Clock:

S-35390A H——Backup of clock function. Current consumption of 0.25μA. 105°C max. operation.

EEPROM:

S-93CxxC H (3-wire)、S-24CxxC H (2-wire)、S-25CxxxA H (SPI)——Serial EEPROM. Built-in data protection functions. 105°C max. operation.
