ABLIC propose is to“downsize the power supply IC, an indispensable part in an automotive camera”, it′s product lineup supports the downsizing and higher performance of automotive camera modules. For example, we provide DC-DC converters in the industry′s smallest class of ultra compact packages or LDO regulator reset ICs with a minimum number of parts.

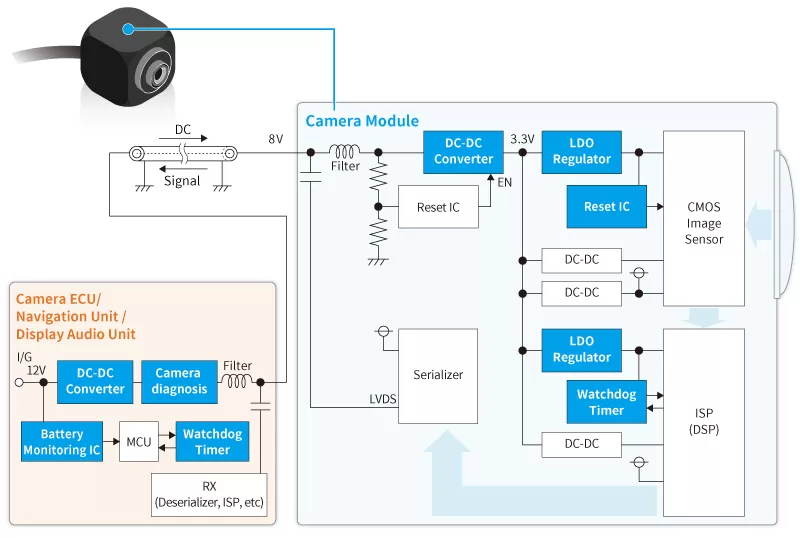

Camera module

DC-DC converter:

S-19902/3——36V input, available in the industry′s smallest package.

Contributes to fewer and more compact external parts.

S-19932/3 (2.2MHz)——18V input, available in an ultra-compact (2.46 x 1.96mm) package.

S-19944/5——18V input, low noise. Contributes to fewer and more compact external parts.

LDO Regulator:

S-19255——5.5V input, 125℃ operation, 300mA output current. Available in an ultra compact (1.0 x 1.0mm) package. Noise countermeasures include a high ripple rejection rate. 0.1μF input capacitors can be used.

S-19251——5.5V input, 105℃ operation, 150mA output current. Available in an ultra compact (0.8 x 0.8mm) package. Noise countermeasures include a high ripple rejection rate.

S-19252——5.5V input, 105℃ operation, 150mA output current. Available in an ultra compact (1.0 x 1.0mm) package. Soft start functionality is integrated.

Voltage detector:

S-19100 H (105℃ operation)——Available in an ultra compact package (1.2 x 1.6mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA.

S-19100 (125℃ operation)——Available in an ultra compact package (2.0 x 2.1mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA.

2.Camera module——Camera ECU

DC-DC converter：

S-19914/5——36V input, low noise, available in the industry′s smallest package. Contributes to fewer and more compact external parts.

Watchdog Timer:

S-19400/1 (125℃operation)——Industryʼs top class super-low current consumption 3.8μA. With reset function. Available in 2.0 x 3.0mm package.

3.Camera ECU

Automotive Connection Diagnosis ICs:

S-19682/3——Available in the industry′s smallest package. Connection diagnosis delivers "Small, Simple and High Accuracy".

S-19700/1——An LDO regulator IC capable of detecting a variety of connection faults.

Voltage detector:

S-191L/N——The industry′s first "Supply voltage divided output" to help the microcontrollers in monitoring voltage. With overvoltage and undervoltage monitoring functions.
