Ultra-Small Package High-Precision Voltage Detector S-1000 Series

Description

The S-1000 series is a series of high-precision voltage detectors developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±1.0%. It operates with low current consumption of 350 nA typ. Two output forms, Nch open-drain and CMOS output, are available. CMOS voltage detector, S-1000 Series is the most suitable for the portable equipments with ultra low current consumption, high precision and corresponding to the small package.

Features

• Ultra-low current consumption

  350 nA typ. (VDD = detection voltage + 1.5 V)

• High-precision detection voltage

  ±1.0%

• Operating voltage range

  0.95 to 5.5 V

• Hysteresis characteristics

  5% typ.

• Detection voltage

  1.5 to 4.6 V (0.1 V step)

• Output form

  Nch open-drain output (Active “L”), CMOS output (Active “L”)

• Lead-free products

Applications

• Power monitor for microcomputers and reset for CPUs.

• Power monitor for portable equipments such as cellular phones, digital still cameras and PDAs.

• Constant voltage power monitor for cameras, video equipments and communication devices.

High-Precision Super-Small Package Voltage Detector S-808xxC Series

Description

The S-808xxC series is a series of high-precision voltage detectors developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0%. Two output forms, Nch open-drain and CMOS output, are available.
Ultra-low current consumption and miniature package lineup can meet demand from the portable device applications.

Features

• Ultra-low current consumption

  1.3 μA Typ. (at V_DD 1.5 V)(Products with detection voltage of 1.4 V Typ. or less),
  0.8 μA Typ. (at V_DD 3.5 V)(Products with detection voltage of 1.5 V Typ. or more)

• High-accuracy detection voltage

  ±2.0 %

• Operating voltage range

  0.65 V to 5.0 V (Products with detection voltage of 1.4 V Typ. or less), 0.95 V to 10.0 V(Products with detection voltage of 1.5 V Typ. or more)

• Hysteresis characteristics

  5 % typ.

• Detection voltage

  0.8 V to 6.0 V (0.1 V step)

• Output form

  Active low CMOS output or active low Nch open-drain

• Lead-free products

Applications

• Power monitor for portable equipment such as note book computers, digital cameras, PDA, and cellular phones

• Constant voltage power monitor for cameras, video equipment and communication devices

• Power monitor for microcomputers and reset for CPUs

• Battery checker

• Detection of power failure

Super-Low Current Consumption Super High-Accuracy Voltage Detector With Delay Circuit (External Delay Time Setting) S-1009 Series

Description

The S-1009 Series is a super high-accuracy voltage detectordeveloped using CMOS process. The detection voltage is fixed internally with an accuracy of ±0.5%. It operates with super low current consumption of 270 nA typ.
The release signal can be delayed by setting a capacitor externally. Delay time accuracy is ±15%. Two output forms Nch open drain and CMOS output are available.
Compared with conventional CMOS voltage detectors, the S-1009 Series is the most suitable for the portable devices due to the super-low current consumption, super high-accuracy and small packages.

Features

• Super-low current consumption

  270 nA typ. (1.2 V ≤ −Vdet < 2.3 V)

• Super high-accuracy detection voltage

  ±0.5% (2.4 V ≤ −Vdet ≤ 4.6 V)±12 mV (0.8 V ≤ −Vdet < 2.4 V)

• Operating voltage range

  0.6 V to 10.0 V (CMOS output products)

• Hysteresis characteristics

  5% ±1%

• Delay time accuracy

  ±15% (CD= 4.7 nF)

• Detection voltage

  0.8 V to 4.6 V (0.1 V step)

• Output form

  Nch open-drain output (Active “L”), CMOS output (Active “L”)

• Lead-free (Sn 100%), halogen-free

Applications

• Power monitor and reset for CPUs and microcomputers

• Constant voltage power monitor for TVs, DVD recorders and home appliances

• Power supply monitor for portable devices such as notebook PCs, digital still cameras and mobile phones

Super-Small Package High-Precision Voltage Detector with Delay Circuit S-809xxC Series

Description

The S-809xxC series is a high-precision voltage detector developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0%. A time delayed reset can be accomplished with the addition of an external capacitor. Two output forms, N-channel open-drain and CMOS output, are available.

Features

• Ultra-low current consumption

  1.0 μA typ.(VDD=2.0V);
  Detection voltage: less-than or equal to 1.4V
  1.1μA typ. (VDD=3.5V);
  Detection voltage: greater-than or equal to 1.5V

• High-precision detection voltage

  ±2.0%

• Operating voltage range

  0.7V to 10.0V

• Detection voltage

  1.3V to 6.0V (0.1V step)

• Hysteresis characteristics

  5% typ.

• Two output forms

  CMOS output active “L”,
  Open-drain output active “L”

• Lead-free products

Applications

• Power supply monitor for portable equipment such as electronic organizers, notebook PCs, cellular phones, digital cameras

• Constant voltage power monitor for cameras, communication equipment and video equipment

• Power monitor and reset for CPUs and microcomputers

High-Precision Voltage Detector with Built-in Delay Cricuit S-801 Series

Description

The S-801 series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using CMOS process. The detection voltage is fixed internally, with an accuracy of ±2.0%. Internal oscillator and counter timer can delay the release signal without external parts. Three delay times 50 ms, 100 ms, and 200 ms are available. Two output forms, Nch open-drain and CMOS output, are available.

Features

• Ultra-low current consumption

  1.3 μA (at VDD = 3.5V)

• High-precision detection voltage

  ±2.0%

• Hysteresis width

  60mV typ.

• Three delay times

  A series: 50 ms typ.,
  B series: 100 ms typ.,
  C series: 200 ms typ.

• ON/OFF switch of delay time (DS pin)

• Operating voltage range

  0.95V to 10.0V

• Detection voltage

  2.2V to 6.0V (0.1V step)

• Output form

  Active low Nch open-drain output or active low CMOS output

• Lead-free products

Applications

• Power monitor for portable equipment such as note computers, digital cameras, PDA, and cellular phones

• Constant voltage power monitor for cameras, video equipment and communication devices

• Power monitor for microcomputers and reset for CPUs

Manual Reset Built-In Delay Circuit (External Delay Time Setting) High-Accuracy Voltage Detector S-1003 Series

Description

The S-1003 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage is fixed internally with an accuracy of ±1.0% (−Vdet ≥ 2.2 V). It operates with current consumption of 500 nA typ.
The release signal can be delayed by setting a capacitor externally. Delay time accuracy is ±15%.
Moreover, since the S-1003 Series includes the manual reset function, the reset signal can be also output forcibly.
Two output forms Nch open-drain output and CMOS output are available.

Features

• Detection voltage

  1.2 V to 5.0 V (0.1 V step)

• Detection voltage accuracy

  ±1.0% (2.2 V ≤ −Vdet ≤ 5.0 V)

  ±22 mV (1.2 V ≤ −Vdet < 2.2 V)

• Current consumption

  500 nA typ.

• Operation voltage range

  0.95 V to 10.0 V

• Hysteresis width

  5% ± 2%

• Manual reset function

  MR pin logic active “L”, active “H”

• Delay time accuracy

  ±15% (CD = 4.7 nF)

• Output form

  Nch open-drain output (Active “L”)

  CMOS output (Active “L”)

• Operation temperature range

  Ta = −40℃ to +85℃

• Lead-free (Sn 100%), halogen-free

Applications

• Power supply monitor for microcomputer and reset for CPU

• Constant voltage power supply monitor for TV, Blu-ray recorder and home appliance

• Power supply monitor for portable devices such as notebook PC, digital still camera and mobile phone

Voltage Detector with SENSE Pin S-1002 Series

Description

The S-1002 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage is fixed internally with an accuracy of ±1.0% (−Vdet(s) ≥ 2.2 V). It operates with current consumption of 500 nA typ.
Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared, so the output is stable even if the SENSE pin falls to 0 V.
Two output forms Nch open-drain output and CMOS output are available.

Features

• Detection voltage

  1.0 V to 5.0 V (0.1 V step)

• Detection voltage accuracy

  ±1.0% (2.2 V ≤ –Vdet(s) ≤ 5.0 V)
  ±22 mV (1.0 V ≤ –Vdet(s) < 2.2 V)

• Current consumption

  500 nA typ.

• Operation voltage range

  0.95 V to 10.0 V

• Hysteresis width

  5% ±2%

• Output form

  Nch open-drain output (Active “L”)
  CMOS output (Active “L”)

• Operation temperature range

  Ta = -40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Power supply monitor for microcomputer and reset for CPU

• Constant voltage power supply monitor for TV, Blu-ray recorder and home appliance

• Power supply monitor for portable devices such as notebook PC, digital still camera and mobile phone

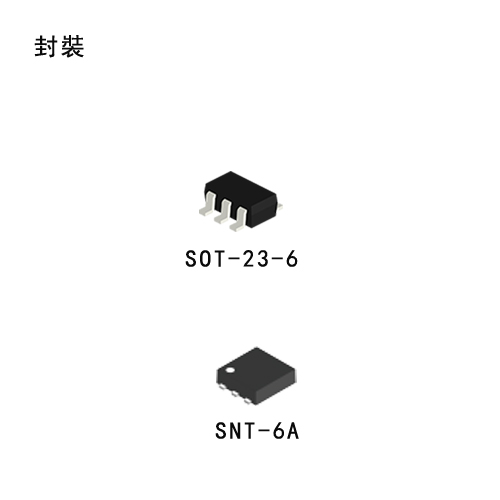

Built-in Delay Circuit (Extenal Delay Time Setting) Voltage Detector with SENSE Pin S-1004 Series

Description

The S-1004 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage is fixed internally with an accuracy of ±1.0% (−Vdet(s) ≥ 2.2 V). It operates with current consumption of 500 nA typ.
Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared, so the output is stable even if the SENSE pin falls to 0 V.
The release signal can be delayed by setting a capacitor externally, and the release delay time accuracy at Ta = +25°C is ±15%.
Two output forms Nch open-drain output and CMOS output are available.

Features

• Detection voltage

  1.0 V to 5.0 V (0.1 V step)

• Detection voltage accuracy

  ±1.0% (2.2 V ≤ –Vdet(s) ≤ 5.0 V)
  ±22 mV (1.0 V ≤ –Vdet(s) < 2.2 V)

• Current consumption

  500 nA typ.

• Operation voltage range

  0.95 V to 10.0 V

• Hysteresis width

  5% ±2%

• Release delay time accuracy

  ±15% (Cd = 4.7 nF, Ta = +25°C)

• Output form

  Nch open-drain output (Active “L”)
  CMOS output (Active “L”)

• Operation temperature range

  Ta = -40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Power supply monitor for microcomputer and reset for CPU

• Constant voltage power supply monitor for TV, Blu-ray recorder and home appliance

• Power supply monitor for portable devices such as notebook PC, digital still camera and mobile phone

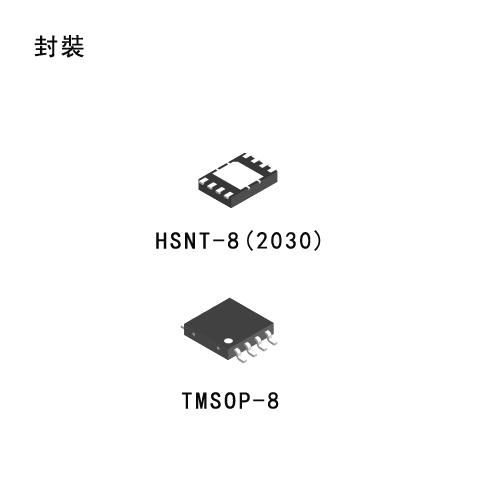

High-Withstand Voltage Built-In Delay Circuit (External Delay Time Setting) Voltage Detector S-1011 Series

Description

The S-1011 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage is fixed internally, and the accuracy of the S-1011 Series A / C / E / G type is ±1.5%. It operates with current consumption of 600 nA typ.
Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared in the SENSE detection product, so the output is stable even if the SENSE pin falls to 0 V.
The detection signal and release signal can be delayed by setting a capacitor externally, and the detection delay time accuracy is ±20% (CN = 3.3 nF, Ta = +25°C), the release delay time accuracy is ±20% (CP = 3.3 nF, Ta = +25°C).
Output form is Nch open-drain output.

Features

• Detection voltage

  3.0 V to 10.0 V (0.05 V step) (SENSE detection product)

  3.6 V to 10.0 V (0.05 V step) (VDD detection product)

• Detection voltage accuracy

  ±1.5% (A / C / E / G type)

• Detection delay time accuracy

  ±20% (CN = 3.3 nF)

• Release delay time accuracy

  ±20% (CP = 3.3 nF)

• Current consumption

  600 nA typ.

• Operation voltage range

  1.8 V to 36.0 V

• Hysteresis width

  “Available” (5.0% typ.) / “unavailable” is selectable.

• Output form

  Nch open-drain output

• Operation temperature range

  Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Power supply monitor for microcomputer and reset for CPU

• Constant voltage power supply monitor for TV and home appliance etc.

• Power supply monitor for Blu-ray recorder, notebook PC and digital still camera

• Industrial equipment, housing equipment

High-Withstand Voltage Built-In Delay Circuit (External Delay Time Setting) Voltage Detector S-1011 Series

Description

The S-1011 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage is fixed internally, and the accuracy of the S-1011 Series A / C / E / G type is ±1.5%. It operates with current consumption of 600 nA typ.
Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared in the SENSE detection product, so the output is stable even if the SENSE pin falls to 0 V.
The detection signal and release signal can be delayed by setting a capacitor externally, and the detection delay time accuracy is ±20% (CN = 3.3 nF, Ta = +25°C), the release delay time accuracy is ±20% (CP = 3.3 nF, Ta = +25°C).
Output form is Nch open-drain output.

Features

• Detection voltage

  3.0 V to 10.0 V (0.05 V step) (SENSE detection product)

  3.6 V to 10.0 V (0.05 V step) (VDD detection product)

• Detection voltage accuracy

  ±1.5% (A / C / E / G type)

• Detection delay time accuracy

  ±20% (CN = 3.3 nF)

• Release delay time accuracy

  ±20% (CP = 3.3 nF)

• Current consumption

  600 nA typ.

• Operation voltage range

  1.8 V to 36.0 V

• Hysteresis width

  “Available” (5.0% typ.) / “unavailable” is selectable.

• Output form

  Nch open-drain output

• Operation temperature range

  Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Application

• Power supply monitor for microcomputer and reset for CPU

• Constant voltage power supply monitor for TV and home appliance etc.

• Power supply monitor for Blu-ray recorder, notebook PC and digital still camera

• Industrial equipment, housing equipment

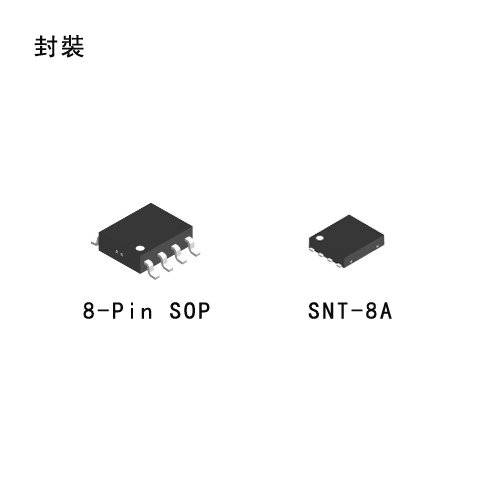

Low Current Consumption Watchdog Timer with Reset Function S-1410/1411

Description

The S-1410/1411 Series is a watchdog timer developed using CMOS technology, which can operate with low current consumption of 3.8 μA typ. The reset function and the low voltage detection function are available.

Features

• Detection voltage

  2.0 V to 5.0 V, selectable in 0.1 V step

• Detection voltage accuracy

  ±1.5%

• Input voltage

  Vdd = 0.9 V to 6.0 V

• Hysteresis width

  5% typ.

• Current consumption

  3.8 μA typ.

• Reset time-out period

  14.5 ms typ. (Cpor = 2200 pF)

• Watchdog operation is switchable : Enable, Disable

• Watchdog operation voltage range : 2.5 V to 6.0 V

• Watchdog mode switching function: Time-out mode, window mode

• Watchdog input edge is selectable

  Rising edge, falling edge, both rising and falling edges

• Product type is selectable

  S-1410 Series
  (Product with W/ T pin (Output : WDOpin))

  S-1411 Series
  (Product without W/ T pin (Output : RSTpin, WDOpin))

• Operation temperature range

  Ta = −40°C to +105°C

• Lead-free (Sn 100%), halogen-free

Application

• Power supply monitoring of microcontroller mounted apparatus and system monitoring

Low Current Consumption Watchdog Timer with Reset Function S-1410/1411

Description

The S-1410/1411 Series is a watchdog timer developed using CMOS technology, which can operate with low current consumption of 3.8 μA typ. The reset function and the low voltage detection function are available.

Features

• Detection voltage

  2.0 V to 5.0 V, selectable in 0.1 V step

• Detection voltage accuracy

  ±1.5%

• Input voltage

  Vdd = 0.9 V to 6.0 V

• Hysteresis width

  5% typ.

• Current consumption

  3.8 μA typ.

• Reset time-out period

  14.5 ms typ. (Cpor = 2200 pF)

• Watchdog operation is switchable : Enable, Disable

• Watchdog operation voltage range : 2.5 V to 6.0 V

• Watchdog mode switching function: Time-out mode, window mode

• Watchdog input edge is selectable

  Rising edge, falling edge, both rising and falling edges

• Product type is selectable

  S-1410 Series
  (Product with W/ T pin (Output : WDOpin))

  S-1411 Series
  (Product without W/ T pin (Output : RSTpin, WDOpin))

• Operation temperature range

  Ta = −40°C to +105°C

• Lead-free (Sn 100%), halogen-free

Application

• Power supply monitoring of microcontroller mounted apparatus and system monitoring

Low Current Consumption Watchdog Timer with Reset Function S-1410/1411

Description

The S-1410/1411 Series is a watchdog timer developed using CMOS technology, which can operate with low current consumption of 3.8 μA typ. The reset function and the low voltage detection function are available.

Features

• Detection voltage

  2.0 V to 5.0 V, selectable in 0.1 V step

• Detection voltage accuracy

  ±1.5%

• Input voltage

  Vdd = 0.9 V to 6.0 V

• Hysteresis width

  5% typ.

• Current consumption

  3.8 μA typ.

• Reset time-out period

  14.5 ms typ. (Cpor = 2200 pF)

• Watchdog operation is switchable : Enable, Disable

• Watchdog operation voltage range : 2.5 V to 6.0 V

• Watchdog mode switching function Time-out mode, window mode

• Watchdog input edge is selectable

  Rising edge, falling edge, both rising and falling edges

• Product type is selectable

  S-1410 Series
  (Product with W/ T pin (Output : WDOpin))

  S-1411 Series
  (Product without W/ T pin (Output : RSTpin, WDOpin))

• Operation temperature range

  Ta = −40°C to +105°C

• Lead-free (Sn 100%), halogen-free

Application

• Power supply monitoring of microcontroller mounted apparatus and system monitoring

Low Current Consumption Watchdog Timer with Reset Function S-1410/1411

Description

The S-1410/1411 Series is a watchdog timer developed using CMOS technology, which can operate with low current consumption of 3.8 μA typ. The reset function and the low voltage detection function are available.

Features

• Detection voltage

  2.0 V to 5.0 V, selectable in 0.1 V step

• Detection voltage accuracy

  ±1.5%

• Input voltage

  Vdd = 0.9 V to 6.0 V

• Hysteresis width

  5% typ.

• Current consumption

  3.8 μA typ.

• Reset time-out period

  14.5 ms typ. (Cpor = 2200 pF)

• Watchdog operation is switchable : Enable, Disable

• Watchdog operation voltage range : 2.5 V to 6.0 V

• Watchdog mode switching function : Time-out mode, window mode

• Watchdog input edge is selectable

  Rising edge, falling edge, both rising and falling edges

• Product type is selectable

  S-1410 Series
  (Product with W/ T pin (Output : WDOpin))

  S-1411 Series
  (Product without W/ T pin (Output : RSTpin, WDOpin))

• Operation temperature range

  Ta = −40°C to +105°C

• Lead-free (Sn 100%), halogen-free

Application

• Power supply monitoring of microcontroller mounted apparatus and system monitoring

Super-Small Package PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8351/8352 Series

Description

The S-8351/8352 series is a CMOS PFM-control step-up switching regulator (DC/DC Converter ICs) that mainly consists of a reference voltage source, an oscillator, and a comparator. The PFM controller allows the duty ratio to be automatically switched according to the load (light load: 50%, high output current: 75%), enabling products with a low ripple over a wide range, high efficiency, and high output current (product types A, B, and D). Products with a fixed duty ratio of 75% are also available (product type C). With the S-8351 series, a step-up switching regulator (DC/DC Converter ICs) can be configured by using an external coil, capacitor, and diode. The built-in MOS FET is turned off by a protection circuit when the voltage at the CONT pin exceeds the limit to prevent it from being damaged. This feature, along with the mini package and low current consumption, makes the S-8351 series ideal for applications such as the power supply unit of portable equipment.

The S-8352 series, which features an external transistor, is suitable for applications requiring a high output current.

Features

• Low voltage operation

  Startup at 0.9 V min. (Iout = 1 mA) guaranteed

• Low input current

  During maximum operation 23.2 µA (Vout = 3.3 V, typ.), During shutdown 0.5 µA (max.)

• Duty ratio

  50/75%, built-in auto-switching-type PFM controller (product types A, B, D)
  75%, built-in fixed-type PFM controller (product type C)

• External parts

  Coil, capacitor, diode

• Output voltage

  Settable to between 2.0 to 6.5 V (product types A, B, C) or 1.5 to 6.5 V (product type D) in 0.1 V steps, accuracy of ±2.4%

• Shutdown function (product type A)

• Vdd / Vout separate type (product type D)

• External transistor type available (S-8352 series)

• Lead-free products

Applications

• Power supply for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supply for audio equipment such as portable CD/MD players

• Constant voltage power supply for cameras, video equipment, and communications equipment

• Power supply for microcomputers

Super-Small Package PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8351/8352 Series

Description

The S-8351/8352 series is a CMOS PFM-control step-up switching regulator (DC/DC Converter ICs) that mainly consists of a reference voltage source, an oscillator, and a comparator. The PFM controller allows the duty ratio to be automatically switched according to the load (light load: 50%, high output current: 75%), enabling products with a low ripple over a wide range, high efficiency, and high output current (product types A, B, and D). Products with a fixed duty ratio of 75% are also available (product type C). With the S-8351 series, a step-up switching regulator (DC/DC Converter ICs) can be configured by using an external coil, capacitor, and diode. The built-in MOS FET is turned off by a protection circuit when the voltage at the CONT pin exceeds the limit to prevent it from being damaged. This feature, along with the mini package and low current consumption, makes the S-8351 series ideal for applications such as the power supply unit of portable equipment.

The S-8352 series, which features an external transistor, is suitable for applications requiring a high output current.

Features

• Low voltage operation

  Startup at 0.9 V min. (Iout = 1 mA) guaranteed

• Low input current

  During maximum operation 23.2 μA (Vout = 3.3 V, typ.), During shutdown 0.5μA(max.)

• Duty ratio

  50/75%, built-in auto-switching-type PFM controller (product types A, B, D)
  75%, built-in fixed-type PFM controller (product type C)

• External parts

  Coil, capacitor, diode

• Output voltage

  Settable to between 2.0 to 6.5 V (product types A, B, C) or 1.5 to 6.5 V (product type D) in 0.1 V steps, accuracy of ±2.4%

• Shutdown function (product type A)

• Vdd / Vout separate type (product type D)

• External transistor type available (S-8352 series)

• Lead-free products

Applications

• Power supply for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supply for audio equipment such as portable CD/MD players

• Constant voltage power supply for cameras, video equipment, and communications equipment

• Power supply for microcomputers

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8353/8354 Series

Description

The S-8353/54 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, a power MOS FET, an error amplifier, a phase compensation circuit, a PWM controller (S-8353) and a PWM/PFM switching controller (S-8354).The step-up switching regulator (DC/DC Converter ICs) can be configured simply by attaching a coil, capacitor, and diode externally. In addition to the above features, the small package and low power consumption of this series make it ideal for portable device applications requiring high efficiency.The S-8353 Series realizes low ripple, high efficiency, and excellent transient characteristics due to its PWM controller, which can vary the duty ratio linearly from 0% to 83% (from 0% to 78% for 250 kHz models), optimally-designed error amplifier, and phase compensation circuits.

The S-8354 Series features a PWM/PFM switching controller that can switch the operation to a PFM controller with a duty ratio is 15% under a light load to prevent a decline in the efficiency due to the IC operating current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9 V (IOUT = 1 mA )

• Low input current

  During maximum operation 23.2 μA (Vout = 3.3 V, typ.), During shutdown 0.5 μA (max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8354)
  15 to 83% (30 kHz and 50 kHz models), 15 to 78% (250 kHz models)

• External parts

  Coil, capacitor, and diode

• Output voltage

  Can be set in 0.1 V steps between 1.5 and 6.5 V (for VDD / VOUT separate types) or 2.0 and 6.5 V (for other than VDD / VOUT separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  30, 50, and 250 kHz

• Soft start function

  6 ms (50 kHz, typ.)

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8353/8354 Series

Description

The S-8353/54 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, a power MOS FET, an error amplifier, a phase compensation circuit, a PWM controller (S-8353) and a PWM/PFM switching controller (S-8354).

The step-up switching regulator (DC/DC Converter ICs) can be configured simply by attaching a coil, capacitor, and diode externally. In addition to the above features, the small package and low power consumption of this series make it ideal for portable device applications requiring high efficiency.

The S-8353 Series realizes low ripple, high efficiency, and excellent transient characteristics due to its PWM controller, which can vary the duty ratio linearly from 0% to 83% (from 0% to 78% for 250 kHz models), optimally-designed error amplifier, and phase compensation circuits.

The S-8354 Series features a PWM/PFM switching controller that can switch the operation to a PFM controller with a duty ratio is 15% under a light load to prevent a decline in the efficiency due to the IC operating current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9 V (IOUT = 1 mA )

• Low current consumption

  During operation 18.7 μA(3.3 V, 50 kHz, typ.),
  During shutdown 0.5 μA(max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8354)
  15 to 83% (30 kHz and 50 kHz models), 15 to 78% (250 kHz models)

• External parts

  Coil, capacitor, and diode

• Output voltage

  Can be set in 0.1 V steps between 1.5 and 6.5 V (for VDD / VOUT separate types) or 2.0 and 6.5 V (for other than VDD / VOUT separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  30, 50, and 250 kHz

• Soft start function

  6 ms (50 kHz, typ.)

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Step-up, Super-small Package, 1.2 MHz PWM / PFM Switchable Switchin Regulator S-8363 Series

Description

The S-8363 Series is a CMOS step-up switching regulator which consists of a referencevoltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a current limit circuit, and a start-up circuit. Due to the operation of the PWM / PFM switching control, pulses are skipped under the light load operation and the S-8363 Series prevents decrease in efficiency caused by IC’s operating current. The S-8363 Series is capable of start-up from 0.9 V (Iout = 1 mA) by the start-up circuit, and is suitable for applications which use one dry cell. The output voltage is freely settable from 1.8 V to 5.0 V by external parts. Ceramic capacitors can be used for output capacitor. Small packages SNT-6A and SOT-23-6 enable high-density mounting.

Features

• Low operation voltage

  Start-up from 0.9 V (Iout = 1 mA) guaranteed

• Oscillation frequency

  1.2 MHz

• Input voltage range

  0.9 V to 4.5 V

• Output current

  300 mA (Vin = 1.8 V, Vout = 3.3 V)

• Reference voltage

  0.6 V±2.5%

• Efficiency

  85%

• Soft start function

  1.2 ms typ.

• Low current consumption

  During switching-off, 95μA typ.

• Duty ratio

  – PWM / PFM switching control
  max.88%

• Power-off function

  Current consumption during power-off 3.0 µA max.

• Current limit circuit

  limits the peak value of inductor current

• Nch power MOS FET ON resistance

  0.25 Ω typ.

• Start-up function

  Operation with fixed duty pulse under the Vout voltage of 1.4 V or less

• Lead-free product

Applications

• MP3 players, digital audio players

• Digital cameras, GPS, wireless transceiver

• Portable devices

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8355/56/57/58 Series

Description

The S-8355/56/57/58 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM control circuit (S-8355/57) and a PWM/PFM switching control circuit (S-8356/58). With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.

The S-8355/57 Series realizes low ripple, high efficiency, and excellent transient characteristics with the PWM control circuit whose duty ratio can vary from 0 % to 83 % (from 0 % to 78 % for 250 kHz and 300 kHz models), the best-designed error amplifier and phase compensation circuits.

The S-8356/58 Series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9V(Iout =1mA )

• Low current consumption

  During operation 25.9 μA (3.3V, 100 kHz, typ.), During shutdown 0.5 μA (max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8356/58)
  15 to 83% (100 kHz models), 15 to 78% (250 kHz and 300 kHz models)

• External parts

  coil, diode, capacitor, and transistor

• Output voltage

  0.1V step setting is available between 1.5 and 6.5V (for Vdd/Vout separate types) or 2.0 and 6.5V (for other than Vdd/Vout separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  100, 250, 300 and 600 kHz

• Soft start function

  6ms (100 kHz, typ.)

• Shutdown function

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8355/56/57/58 Series

Description

The S-8355/56/57/58 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM control circuit (S-8355/57) and a PWM/PFM switching control circuit (S-8356/58). With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.

The S-8355/57 Series realizes low ripple, high efficiency, and excellent transient characteristics with the PWM control circuit whose duty ratio can vary from 0 % to 83 % (from 0 % to 78 % for 250 kHz and 300 kHz models), the best-designed error amplifier and phase compensation circuits.

The S-8356/58 Series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9V(Iout =1mA )

• Low current consumption

  During operation 25.9 μA (3.3V, 100 kHz, typ.), During shutdown 0.5 μA (max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8356/58)
  15 to 83% (100 kHz models), 15 to 78% (250 kHz and 300 kHz models)

• External parts

  coil, diode, capacitor, and transistor

• Output voltage

  0.1V step setting is available between 1.5 and 6.5V (for Vdd/Vout separate types) or 2.0 and 6.5V (for other than Vdd/Vout separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  100, 250, 300 and 600 kHz

• Soft start function

  6ms (100 kHz, typ.)

• Shutdown function

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8355/56/57/58 Series

Description

The S-8355/56/57/58 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM control circuit (S-8355/57) and a PWM/PFM switching control circuit (S-8356/58). With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.

The S-8355/57 Series realizes low ripple, high efficiency, and excellent transient characteristics with the PWM control circuit whose duty ratio can vary from 0 % to 83 % (from 0 % to 78 % for 250 kHz and 300 kHz models), the best-designed error amplifier and phase compensation circuits.

The S-8356/58 Series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9V(Iout =1mA )

• Low current consumption

  During operation 25.9 μA (3.3V, 100 kHz, typ.), During shutdown 0.5 μA (max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8356/58)
  15 to 83% (100 kHz models), 15 to 78% (250 kHz and 300 kHz models)

• External parts

  coil, diode, capacitor, and transistor

• Output voltage

  0.1V step setting is available between 1.5 and 6.5V (for Vdd/Vout separate types) or 2.0 and 6.5V (for other than Vdd/Vout separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  100, 250, 300 and 600 kHz

• Soft start function

  6ms (100 kHz, typ.)

• Shutdown function

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Super-Small Package PWM Control, PWM/PFM Control Step-Up Switching Regulator (DC/DC Converter ICs) S-8355/56/57/58 Series

Description

The S-8355/56/57/58 Series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM control circuit (S-8355/57) and a PWM/PFM switching control circuit (S-8356/58). With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current.

The S-8355/57 Series realizes low ripple, high efficiency, and excellent transient characteristics with the PWM control circuit whose duty ratio can vary from 0 % to 83 % (from 0 % to 78 % for 250 kHz and 300 kHz models), the best-designed error amplifier and phase compensation circuits.

The S-8356/58 Series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.

Features

• Low voltage operation

  Start-up is guaranteed from 0.9V(Iout =1mA )

• Low current consumption

  During operation 25.9 μA (3.3V, 100 kHz, typ.), During shutdown 0.5 μA (max.)

• Duty ratio

  Built-in PWM/PFM switching control circuit (S-8356/58)
  15 to 83% (100 kHz models), 15 to 78% (250 kHz and 300 kHz models)

• External parts

  coil, diode, capacitor, and transistor

• Output voltage

  0.1V step setting is available between 1.5 and 6.5V (for Vdd/Vout separate types) or 2.0 and 6.5V (for other than Vdd/Vout separate types).
  Accuracy of ±2.4%.

• Oscillation frequency

  100, 250, 300 and 600 kHz

• Soft start function

  6ms (100 kHz, typ.)

• Shutdown function

• Lead-free products

Applications

• Power supplies for portable equipment such as digital cameras, electronic notebooks, and PDAs

• Power supplies for audio equipment such as portable CD/MD players

• Constant voltage power supplies for cameras, video equipment, and communications equipment

• Power supplies for microcomputers

Step-Up, Super-Small Package, 1.2 MHz PWM Control or PWM/PFM Switchable Switching Regulator Controller S-8365/8366 Series

Description

The S-8365/8366 Series is a CMOS step-up switching regulator controller which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a timer latch short-circuit protection circuit, a PWM control circuit (S-8365 Series) and a PWM / PFM switching control circuit (S-8366 Series). With an external low-ON-resistance Nch Power MOS, this product is ideal for applications requiring high efficiency and a high output current. The S-8365 Series efficiently works on voltage’s condition of large I/O difference due to the PWM control circuit linearly varies the duty ratio to 90%. During light-load, the S-8366 Series switches its operation to the PFM control by the PWM / PFM switching control circuit in order to prevent efficiency decline due to the IC operating current. Ceramic capacitors can be used for output capacitor. Small packages SNT-6A, SOT-23-5 and SOT-23-6 enable high-density mounting.

Features

• Low operation voltage

  Start at 1.1 V (1 mA) guaranteed (in the product without UVLO function)

• Input voltage range

  1.8 V to 5.5 V

• Oscillation frequency

  1.2 MHz, 600 kHz

• Reference voltage

  0.6 V±2.0%

• Soft start function

  7 ms typ.

• Low current consumption

  70μA typ. at switching off

• Duty ratio

  Built-in PWM / PFM switching control circuit (S-8366 Series)
  28% to 85% (1.2 MHz product)
  28% to 90% (600 kHz product)

• Shutdown function

  Current consumption 1.0 µA max. at shutdown

• External parts

  Inductor, diode, capacitor, transistor

• Timer latch short-circuit protection circuit

  Selectable with / without short-circuit protection circuit for each product
  Settable delay time by external capacitor (in the product with short-circuit protection)

• UVLO (under-voltage lockout) function

  Selectable with / without UVLO for each product

• Lead-free product

Applications

• MP3 players, digital audio players

• Digital cameras, GPS, wireless transceiver

• Portable devices

Step-Up, Super-Small Package, 1.2 MHz PWM Control or PWM/PFM Switchable Switching Regulator Controller S-8365/8366 Series

Description

The S-8365/8366 Series is a CMOS step-up switching regulator controller which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a timer latch short-circuit protection circuit, a PWM control circuit (S-8365 Series) and a PWM / PFM switching control circuit (S-8366 Series). With an external low-ON-resistance Nch Power MOS, this product is ideal for applications requiring high efficiency and a high output current. The S-8365 Series efficiently works on voltage’s condition of large I/O difference due to the PWM control circuit linearly varies the duty ratio to 90%. During light-load, the S-8366 Series switches its operation to the PFM control by the PWM / PFM switching control circuit in order to prevent efficiency decline due to the IC operating current. Ceramic capacitors can be used for output capacitor. Small packages SNT-6A, SOT-23-5 and SOT-23-6 enable high-density mounting.

Features

• Low operation voltage

  Start at 1.1 V (1 mA) guaranteed (in the product without UVLO function)

• Input voltage range

  1.8 V to 5.5 V

• Oscillation frequency

  1.2 MHz, 600 kHz

• Reference voltage

  0.6 V±2.0%

• Soft start function

  7 ms typ.

• Low current consumption

  70μA typ. at switching off

• Duty ratio

  Built-in PWM / PFM switching control circuit (S-8366 Series)
  28% to 85% (1.2 MHz product)
  28% to 90% (600 kHz product)

• Shutdown function

  Current consumption 1.0 µA max. at shutdown

• External parts

  Inductor, diode, capacitor, transistor

• Timer latch short-circuit protection circuit

  Selectable with / without short-circuit protection circuit for each product
  Settable delay time by external capacitor (in the product with short-circuit protection)

• UVLO (under-voltage lockout) function

  Selectable with / without UVLO for each product

• Lead-free product

Applications

• MP3 players, digital audio players

• Digital cameras, GPS, wireless transceiver

• Portable devices

PWM Control & PWM/PFM Control High Frequency Step-Up Switching Regulator (DC/DC Converter ICs) S-8340/8341 Series

Description

The S-8340/8341 series consists of CMOS step-up switching regulator (DC/DC Converter ICs)-controllers with PWM control (S-8340) and PWM/PFM switched control (S-8341). These devices contain a reference voltage source, oscillation circuit, error amplifier, phase compensation circuit, PWM control circuit, and other components. Since the oscillation frequency is a high 300 kHz or 600 kHz, with the addition of a small external component, the ICs can function as step-up switching regulators with high efficiency and large output current. The speed of the output stage is enhanced so that the Nch power MOS with a low ON resistance can be switched quickly.
The S-8340 provides low-ripple power, high-efficiency, and excellent transient characteristics thanks to a PMW control circuit capable of varying the duty ratio linearly from 0% to 82% and optimized error amplifier, and phase compensation circuit.
The S-8341 contains a PWM/PFM switching control circuit so that it operates using PWM control with a duty ratio of 27% or higher and using PFM control with a duty ratio of lower than 27% to ensure high efficiency in all load ranges. These ICs serve as ideal main power supply units for portable devices when coupled with the 8-pin TSSOP package and high oscillation frequencies.

Features

• Oscillation frequency

  600 kHz (A & B series), 300 kHz (C & D series).

• Output voltage

  Internally selectable in the range 2.5V to 6.0V in steps of 0.1V (Output voltage fixed output type)

• Output voltage precision

  ±2.0%

• Output voltage external setting (FB) type available. FB terminal voltage (VFB) 1.0V

• The only peripheral components that can be used with this IC are a transistor, a coil, a diode, capacitors (3), and a resistor.

• Duty ratio

  0% to 82% typ. PWM control (S-8340)
  27% to 82% typ. PWM/PFM-switched control (S-8341, A & B series)
  21% to 82% typ. PWM/PFM-switched control (S-8341, C & D series)

• Low-voltage operation

  Oscillation can start when VDD=0.9V.

• Built-in current limiting circuit

  Can be set with an external resistor (RSENSE).

• Soft-start function

  Can be set with an external capacitor (CSS).

• With a power-off function.

• Lead-free products

Applications

• Power supplies for PDAs, electronic notebooks, and portable devices

• Power supplies for audio equipment, including portable CD players, portable MD players and headphone stereo equipment

• Main and sub power supplies for notebook computers and peripheral equipment

• Fixed voltage power supply for cameras, video equipment and communications equipment

PWM Control & PWM/PFM Control High Frequency Step-Up Switching Regulator (DC/DC Converter ICs) S-8340/8341 Series

Description

The S-8340/8341 series consists of CMOS step-up switching regulator (DC/DC Converter ICs)-controllers with PWM control (S-8340) and PWM/PFM switched control (S-8341). These devices contain a reference voltage source, oscillation circuit, error amplifier, phase compensation circuit, PWM control circuit, and other components. Since the oscillation frequency is a high 300 kHz or 600 kHz, with the addition of a small external component, the ICs can function as step-up switching regulators with high efficiency and large output current. The speed of the output stage is enhanced so that the Nch power MOS with a low ON resistance can be switched quickly.
The S-8340 provides low-ripple power, high-efficiency, and excellent transient characteristics thanks to a PMW control circuit capable of varying the duty ratio linearly from 0% to 82% and optimized error amplifier, and phase compensation circuit.
The S-8341 contains a PWM/PFM switching control circuit so that it operates using PWM control with a duty ratio of 27% or higher and using PFM control with a duty ratio of lower than 27% to ensure high efficiency in all load ranges. These ICs serve as ideal main power supply units for portable devices when coupled with the 8-pin TSSOP package and high oscillation frequencies.

Features

• Oscillation frequency

  600 kHz (A & B series), 300 kHz (C & D series).

• Output voltage

  Internally selectable in the range 2.5V to 6.0V in steps of 0.1V (Output voltage fixed output type)

• Output voltage precision

  ±2.0%

• Output voltage external setting (FB) type available. FB terminal voltage (VFB) 1.0V

• The only peripheral components that can be used with this IC are a transistor, a coil, a diode, capacitors (3), and a resistor.

• Duty ratio

  0% to 82% typ. PWM control (S-8340)
  27% to 82% typ. PWM/PFM-switched control (S-8341, A & B series)
  21% to 82% typ. PWM/PFM-switched control (S-8341, C & D series)

• Low-voltage operation

• Oscillation can start when VDD=0.9V.

• Built-in current limiting circuit

  Can be set with an external resistor (RSENSE).

• Soft-start function

  Can be set with an external capacitor (CSS).

• With a power-off function.

• Lead-free products

Applications

• Power supplies for PDAs, electronic notebooks, and portable devices

• Power supplies for audio equipment, including portable CD players, portable MD players and headphone stereo equipment

• Main and sub power supplies for notebook computers and peripheral equipment

• Fixed voltage power supply for cameras, video equipment and communications equipment

Step-up, for LCD Bias Supply, 1-channel, PWM Control Switching Regulator Controller S-8333 Series

Description

The S-8333 Series is a CMOS step-up switching regulator which mainly consists of a reference voltage circuit, an oscillator, an error amplifier, a PWM controller, an under voltage lockout circuit (UVLO), and a timer latch short-circuit protection circuit. Because its minimum operating voltage is as low as 1.8 V, this switching regulator is ideal for the power supply of an LCD or for portable systems that operate on a low voltage. The internal oscillation frequency can be set up to 1.08 MHz, via the resistor connected to the ROSC pin. The maximum duty ratio of PWM control can be controlled by the resistor connected to the RDuty pin. The soft-start function at power application is accomplished by combining the reference voltage control and maximum duty control methods. Even if the voltage of the FB pin is retained lower than the reference voltage due to the factor outside the IC, the output voltage is raised by controlling the maximum duty. The phase compensation and gain value can be adjusted according to the values of the resistor and capacitor connected to the CC pin. Therefore, the operation stability and transient response can be correctly set for each application. The reference voltage accuracy is as high as 1.0 V ±1.5%, and any voltage can be output by using an external output voltage setting resistor. In addition, the delay time of the short-circuit protection circuit can be set by using the capacitor connected to the CSP pin. If the maximum duty condition continues because of short-circuiting, the capacitor externally connected to the CSP pin is charged, and oscillation stops after a specific time. The short-circuit protection function is cancelled when the power supply is raised to the UVLO release voltage after it has been lowered to the UVLO detection voltage. A ceramic capacitor or a tantalum capacitor is used as the output capacitor, depending on the setting. This controller IC allows various settings and selections and employs a small

Features

• Low voltage operation

  1.8 V to 6.0 V

• Oscillation frequency

  280 kHz to 1.08 MHz (selectable by external resistor)

• Maximum duty

  47 to 88.5% (selectable by external resistor)

• Reference voltage

  1.0 V±1.5%

• UVLO (under-voltage lockout) function

  Detection voltage can be selected from between 1.5 V and 2.3 V in 0.1 V steps. Hysteresis width can be selected from between 0.1 V and 0.3 V in 0.1 V steps.

• Timer latch short-circuit protection circuit

  Delay time can be set using an external capacitor.

• Soft-start function

  Soft-start time can be selected in three steps, 10 ms, 15 ms, and 20 ms. Both reference voltage control and maximum duty control methods are applied

• Phase compensation external setting

  Control is possible via the resistor connected between the CC and GND pins and capacitor

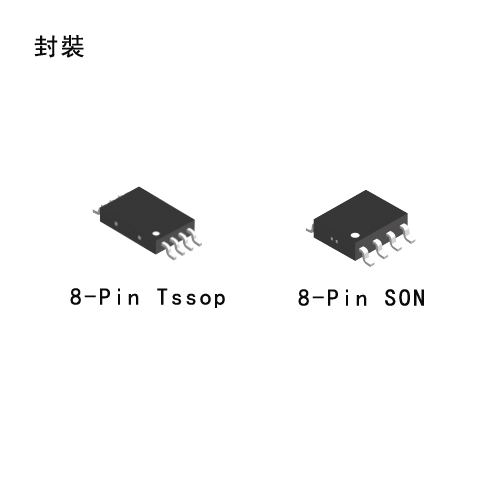

• Small package

  SNT-8A, 8-Pin TSSOP

Applications

• Power supplies for LCDs and CCDs

• Power supplies for portable equipment

Step-up High-frequency, PWM Control Switching Regulator (DC/DC Converter ICs) Controllers S-8337/8338 Series

Description

The S-8337/38 series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage circuit, an oscillator, an error amplifier, a PWM controller, an under voltage lockout circuit (UVLO), and a timer latch short-circuit protection circuit. Because its minimum operating voltage is as low as 1.8 V, this switching regulator (DC/DC Converter ICs) is ideal for the power supply of an LCD or for portable systems that operate on a low voltage. The internal oscillation frequency can be set up to 1.133 MHz, via the resistor connected to the ROSC pin.

With the S-8337 series, the maximum duty ratio of PWM control can be controlled by the resistor connected to the RDuty pin. With the S-8338 series, the maximum duty ratio is fixed (to 88%). The phase compensation and gain value can be adjusted according to the values of the resistor and capacitor connected to the CC pin. Therefore, the operation stability and transient response can be correctly set for each application. The reference voltage accuracy is as high as 1.0 V ±1.5%, and any voltage can be output by using an external output voltage setting resistor.

In addition, the delay time of the short-circuit protection circuit can be set by using the capacitor connected to the CSP pin. If the maximum duty condition continues because of short-circuiting, the capacitor externally connected to the CSP pin is charged, and oscillation stops after a specific time. This condition is cleared by re-application of power or by setting the switching regulator(DC/DC Converter ICs) (S-8338 series) to the shutdown status. A ceramic capacitor or a tantalum capacitor is used as the output capacitor, depending on the setting. This controller IC allows various settings and selections and employs a small package, making it very easy to use.

Features

• Low voltage operation

  1.8 V to 6.0 V

• Oscillation frequency

  286 kHz to 1.133 MHz (selectable by external resistor)

• Maximum duty

  47 to 88.5% (selectable by external resistor) (S-8337 series)
  Fixed to 88% typ. (S-8338 series)

• Reference voltage

  1.0 V±1.5%

• UVLO (under-voltage lockout) function

  Detection voltage can be selected from between 1.5 V and 2.3 V in 0.1 V steps.
  Hysteresis width can be selected from between 0.1 V and 0.3 V in 0.1 V steps.

• Timer latch short-circuit protection circuit

  Delay time can be set using an external capacitor.

• Soft-start function

  Soft-start time can be selected in three steps, 10 ms, 15 ms, and 20 ms.

• Phase compensation external setting

  Adjustable by connecting resistor and capacitor in series to GND.

• Shutdown function

  S-8338 series, shutdown current consumption: 1.0 μA max.

• Lead-free products

Applications

• Power supplies for LCDs and CCDs

• Power supplies for portable equipment

Step-up High-frequency, PWM Control Switching Regulator (DC/DC Converter ICs) Controllers S-8337/8338 Series

Description

The S-8337/38 series is a CMOS step-up switching regulator (DC/DC Converter ICs) which mainly consists of a reference voltage circuit, an oscillator, an error amplifier, a PWM controller, an under voltage lockout circuit (UVLO), and a timer latch short-circuit protection circuit. Because its minimum operating voltage is as low as 1.8 V, this switching regulator (DC/DC Converter ICs) is ideal for the power supply of an LCD or for portable systems that operate on a low voltage. The internal oscillation frequency can be set up to 1.133 MHz, via the resistor connected to the ROSC pin.

With the S-8337 series, the maximum duty ratio of PWM control can be controlled by the resistor connected to the RDuty pin. With the S-8338 series, the maximum duty ratio is fixed (to 88%). The phase compensation and gain value can be adjusted according to the values of the resistor and capacitor connected to the CC pin. Therefore, the operation stability and transient response can be correctly set for each application. The reference voltage accuracy is as high as 1.0 V ±1.5%, and any voltage can be output by using an external output voltage setting resistor.

In addition, the delay time of the short-circuit protection circuit can be set by using the capacitor connected to the CSP pin. If the maximum duty condition continues because of short-circuiting, the capacitor externally connected to the CSP pin is charged, and oscillation stops after a specific time. This condition is cleared by re-application of power or by setting the switching regulator(DC/DC Converter ICs) (S-8338 series) to the shutdown status. A ceramic capacitor or a tantalum capacitor is used as the output capacitor, depending on the setting. This controller IC allows various settings and selections and employs a small package, making it very easy to use.

Features

• Low voltage operation

  1.8 V to 6.0 V

• Oscillation frequency

  286 kHz to 1.133 MHz (selectable by external resistor)

• Maximum duty

  47 to 88.5% (selectable by external resistor) (S-8337 series)
  Fixed to 88% typ. (S-8338 series)

• Reference voltage

  1.0 V±1.5%

• UVLO (under-voltage lockout) function

  Detection voltage can be selected from between 1.5 V and 2.3 V in 0.1 V steps.
  Hysteresis width can be selected from between 0.1 V and 0.3 V in 0.1 V steps.

• Timer latch short-circuit protection circuit

  Delay time can be set using an external capacitor.

• Soft-start function

  Soft-start time can be selected in three steps, 10 ms, 15 ms, and 20 ms.

• Phase compensation external setting

  Adjustable by connecting resistor and capacitor in series to GND.

• Shutdown function

  S-8338 series, shutdown current consumption: 1.0 µA max.

• Lead-free products

Applications

• Power supplies for LCDs and CCDs

• Power supplies for portable equipment

Step-Down, Built-in FET, Synchronous Rectification, PWM Control Switching Regulator (DC/DC Converter ICs) S-8550 Series

Description

The S-8550 Series is a CMOS synchronous rectification step-down switching regulator which mainly consists of a reference voltage circuit, an oscillator, an error amplifier, a phase compensation circuit, a PWM controller, an under voltage lockout circuit (UVLO), a current limit circuit, and a power MOS FET. The oscillation frequency is high at 1.2 MHz, so a high efficiency, large output current, step-down switching regulator can be achieved by using small external parts. The built-in synchronous rectification circuit makes achieving high efficiency easier compared with conventional step-down switching regulators. A ceramic capacitor can be used as an output capacitor. High-density mounting is supported by adopting packages small SOT-23-5 and super-small and thin SNT-8A.

Features

• Oscillation frequency

  1.2 MHz

• Input voltage range

  2.0 to 5.5 V

• Output voltage range

  Arbitrarily settable by external output voltage setting resistor

• Output current

  600 mA

• Reference voltage

  0.6 V ±2.0%

• Efficiency

  92%

• Soft-start function

  1 ms typ.

• Shutdown function

  Shutdown current consumption: 1.0 µA max.

• Built-in current limit circuit

• Pch power MOS FET on-resistance

  0.4 Ω typ.

• Nch power MOS FET on-resistance

  0.3 Ω typ.

• Constant continuous mode operation (no light load mode)

• Lead-free, Sn 100%, halogen-free

Applications

• Mobile devices, such as mobile phones, Bluetooth devices, wireless devices, digital audio players, digital still cameras, portable DVD players, and portable CD players

PWM Control & PWM/PFM Control Step-Down Switching Regulator (DC/DC Converter ICs) S-8520/8521 Series

Description

The S-8520/8521 series consists of CMOS step-down switching regulator (DC/DC Converter ICs)-controllers with PWM-control (S-8520) and PWM/PFM-switched control (S-8521). These devices contain a reference voltage source, oscillation circuit, error amplifier, and other components.
The S-8520 series provides low-ripple power, high-efficiency, and excellent transient characteristics thanks to a PWM control circuit capable of varying the duty ratio linearly from 0% up to 100%. The series also contains an error amplifier circuit as well as a soft-start circuit that prevents overshoot at startup.
The S-8521 series works with either PWM control or PFM control, and can switch from one to the other. It normally operates using PWM control with a duty ratio of 25% to 100%, but under a light load, it automatically switches to PFM control with a duty ratio of 25%. This series ensures high efficiency over a wide range of conditions, from standby mode to operation of peripheral equipment.
With the addition of an external Pch Power MOS FET or PNP transistor, a coil, capacitors, and a diode connected externally, these ICs can function as step-down switching regulators (DC/DC Converter ICs). They serve as ideal power supply units for portable devices when coupled with the SOT-23-5 minipackage, providing such outstanding features as low current consumption. Since this series can accommodate an input voltage of up to 16V, it is also ideal when operating via an AC adapter.

Features

• Low current consumption

  In operation:
  60 μA. (A & B series)
  21 μA. (C & D series)
  100 μA. (E & F series)
  When powered off:
  0.5 μA.

• Input voltage

  2.5 V to 16 V (B, D, F series)
  2.5V to 10V (A, C, E series)

• Output voltage

  Selectable between 1.5V and 6.0V in steps of 0.1V.

• Duty ratio

  0% to 100% PWM control (S-8520)
  25% to 100% PWM/PFM-switched control (S-8521)

• The only peripheral components that can be used with this IC are a Pch power MOS FET or PNP transistor, a coil, a diode, and capacitors (If a PNP transistor is used, a base resistance and a capacitor will also be required).

• Oscillation frequency

  180 kHz typ. (A & B series), 60 kHz typ. (C & D series), or 300 kHz typ. (E, F series).

• Soft-start function

  8 msec. typ. (A & B series) 12 msec. typ.(C & D series), or 4.5 msec. typ. (E, F series).

• With a power-off function.

• With a built-in overload protection circuit.
  Overload detection time: 4 msec. typ. (A series), 14 msec. typ. (C series) or 2.6 msec. typ.(E, F series).

• Lead-free products

Applications

• On-board power supplies of battery devices for portable telephones, electronic notebooks, PDAs, and the like

• Power supplies for audio equipment, including portable CD players and headphone stereo equipment

• Fixed voltage power supply for cameras, video equipment and communications equipment

• Power supplies for microcomputers

• Conversion from four NiH or NiCd cells or two lithium-ion cells to 3.3V/3V

• Conversion of AC adapter input to 5V/3V

PWM Control & PWM/PFM Control Step-Down Switching Regulator (DC/DC Converter ICs) S-8520/8521 Series

Description

The S-8520/8521 series consists of CMOS step-down switching regulator (DC/DC Converter ICs)-controllers with PWM-control (S-8520) and PWM/PFM-switched control (S-8521). These devices contain a reference voltage source, oscillation circuit, error amplifier, and other components.
The S-8520 series provides low-ripple power, high-efficiency, and excellent transient characteristics thanks to a PWM control circuit capable of varying the duty ratio linearly from 0% up to 100%. The series also contains an error amplifier circuit as well as a soft-start circuit that prevents overshoot at startup.
The S-8521 series works with either PWM control or PFM control, and can switch from one to the other. It normally operates using PWM control with a duty ratio of 25% to 100%, but under a light load, it automatically switches to PFM control with a duty ratio of 25%. This series ensures high efficiency over a wide range of conditions, from standby mode to operation of peripheral equipment.
With the addition of an external Pch Power MOS FET or PNP transistor, a coil, capacitors, and a diode connected externally, these ICs can function as step-down switching regulators (DC/DC Converter ICs). They serve as ideal power supply units for portable devices when coupled with the SOT-23-5 minipackage, providing such outstanding features as low current consumption. Since this series can accommodate an input voltage of up to 16V, it is also ideal when operating via an AC adapter.

Features

• Low current consumption

  In operation:
  60 μA. (A & B series)
  21 μA. (C & D series)
  100 μA. (E & F series)
  When powered off:
  0.5 μA.

• Input voltage

  2.5 V to 16 V (B, D, F series)
  2.5V to 10V (A, C, E series)

• Output voltage

  Selectable between 1.5V and 6.0V in steps of 0.1V.

• Duty ratio

  0% to 100% PWM control (S-8520)
  25% to 100% PWM/PFM-switched control (S-8521)

• The only peripheral components that can be used with this IC are a Pch power MOS FET or PNP transistor, a coil, a diode, and capacitors (If a PNP transistor is used, a base resistance and a capacitor will also be required).

• Oscillation frequency

  180 kHz typ. (A & B series), 60 kHz typ. (C & D series), or 300 kHz typ. (E, F series).

• Soft-start function

  8 msec. typ. (A & B series) 12 msec. typ.(C & D series), or 4.5 msec. typ. (E, F series).

• With a power-off function.

• With a built-in overload protection circuit.
  Overload detection time: 4 msec. typ. (A series), 14 msec. typ. (C series) or 2.6 msec. typ.(E, F series).

• Lead-free products

Applications

• On-board power supplies of battery devices for portable telephones, electronic notebooks, PDAs, and the like

• Power supplies for audio equipment, including portable CD players and headphone stereo equipment

• Fixed voltage power supply for cameras, video equipment and communications equipment

• Power supplies for microcomputers

• Conversion from four NiH or NiCd cells or two lithium-ion cells to 3.3V/3V

• Conversion of AC adapter input to 5V/3V

PWM Control & PWM/PFM Control High Frequency Step-Down Switching Regulator (DC/DC Converter ICs) S-8540/8541 Series

Description

The S-8540/8541 series is a family of CMOS step-down switching regulator (DC/DC Converter ICs) controllers with PWM control (S-8540) and PWM/PFM switchover control (S-8541). These devices consist of a reference voltage source, oscillation circuit, an error amplifier, phase compensation circuit, PWM control circuit, current limit circuit. A high efficiency and large current switching regulator (DC/DC Converter ICs) is realized with the help of small external components due to the high oscillation frequency, 300 kHz and 600 kHz.

The S-8540 provides low-ripple voltage, high efficiency, and excellent transient characteristics which come form the PMW control circuit capable of varying the duty ratio linearly from 0% to 100%, the optimized error amplifier, and the phase compensation circuit.

The S-8541 operates under PWM control when the duty ratio is 29% or higher and operates under PFM control when the duty ratio is less than 29% to ensure high efficiency over all load range.

These controllers serve as ideal main power supply units for portable devices due to the high oscillation frequencies together with the small 8-pin MSOP package.

Features

• Oscillation frequency

  600 kHz (A & B series), 300 kHz (C & D series)

• Output voltage

  1.5V to 6.0V in steps of 0.1V (A & C series)

• Output voltage precision

  ±2.0%

• Feed back type for output voltage (FB)

• External components

  a transistor, a coil, a diode, and capacitors.

• Built-in PWM/PFM switchover control circuit (S-8541)

  Duty ratio: 29% (PFM control),
  29 to 100% (PWM control)

• Current limit circuit

  Current is set by an external resistor RSENSE.

• Soft-start

  Time is set by an capacitor CSS and a resistor RSS.

• Shutdown function

• Lead-free products

Applications

• Power supplies for PDAs, electric organizers, and portable devices

• Power supplies for audio equipment such as portable CD players and headphone stereos

• Main or sub power supplies for notebook computers and peripheral equipment

PWM Control & PWM/PFM Control High Frequency Step-Down Switching Regulator (DC/DC Converter ICs) S-8540/8541 Series

Description

The S-8540/8541 series is a family of CMOS step-down switching regulator (DC/DC Converter ICs) controllers with PWM control (S-8540) and PWM/PFM switchover control (S-8541). These devices consist of a reference voltage source, oscillation circuit, an error amplifier, phase compensation circuit, PWM control circuit, current limit circuit. A high efficiency and large current switching regulator (DC/DC Converter ICs) is realized with the help of small external components due to the high oscillation frequency, 300 kHz and 600 kHz.

The S-8540 provides low-ripple voltage, high efficiency, and excellent transient characteristics which come form the PMW control circuit capable of varying the duty ratio linearly from 0% to 100%, the optimized error amplifier, and the phase compensation circuit.

The S-8541 operates under PWM control when the duty ratio is 29% or higher and operates under PFM control when the duty ratio is less than 29% to ensure high efficiency over all load range.

These controllers serve as ideal main power supply units for portable devices due to the high oscillation frequencies together with the small 8-pin MSOP package.

Features

• Oscillation frequency

  600 kHz (A & B series), 300 kHz (C & D series)

• Output voltage

  1.5V to 6.0V in steps of 0.1V (A & C series)

• Output voltage precision

  ±2.0%

• Feed back type for output voltage (FB)

• External components

  a transistor, a coil, a diode, and capacitors.

• Built-in PWM/PFM switchover control circuit (S-8541)

  Duty ratio: 29% (PFM control),
  29 to 100% (PWM control)

• Current limit circuit

  Current is set by an external resistor RSENSE.

• Soft-start

  Time is set by an capacitor CSS and a resistor RSS.

• Shutdown function

• Lead-free products

Applications

• Power supplies for PDAs, electric organizers, and portable devices

• Power supplies for audio equipment such as portable CD players and headphone stereos

• Main or sub power supplies for notebook computers and peripheral equipment

Synchronous PWM Control Step-Down Switching Regulator (DC/DC Converter ICs) S-8533 Series

Description

The S-8533 series is a synchronous PWM control CMOS step-down switching regulator (DC/DC Converter ICs) controller that includes a reference voltage source, synchronous circuit, an oscillation circuit, an error amplifier, a phase compensation circuit, and a PWM controller.

An efficient step-down switching regulator (DC/DC Converter ICs) can be realized simply by adding external Pch and Nch power MOSFETs, one coil, and three capacitors.

Since the oscillation frequency is a high 300 kHz, the S-8533 can be used to configure a high efficiency step-down switching regulator (DC/DC Converter ICs) capable of driving high output current using small external components and a 3 to 10% in-crease in efficiency is obtained compared to conventional step-down switching regulators(DC/DC Converter ICs).

The 8-Pin TSSOP and high oscillation frequency make the S-8533 ideal as the main power supply for portable devices.

Features

• Synchronous rectification system realizing high efficiency (typ. 94%)

• External components

  Use at maximum duty = 100% and use of a battery up to maximum life is possible by using Pch and Nch MOS transistors externally.

• Oscillation frequency

  300 kHz

• Input voltage

  2.7 to 16.0 V

• Output voltage

  1.25 V, 1.3 to 6.0 V(Selectable in 0.1 V steps)

• Output voltage accuracy

  ±2.0%

• Soft start

  Can be set by an external capacitance CSS

• Shutdown function

• Lead-free products

Applications

• Constant voltage power supply for hard disks and DVD drivers

• Power supplies for portable devices, such as digital cameras, PDAs, electronic organizers, and cellular phones

• Main or sub power supply for notebook computers and peripheral equipment

• Constant voltage power supply for cameras, video equipment, and communication devices

Supply Voltage Divided Output, 5.5 V Input, 50 mA Synchronous Step-down switching Regulator with 260 nA Quiescent Current S-85S0P Series

Describe:

The S-85S0P Series introduces own distinctive low power consumption control and COT (Constant On-Time) control, features ultra low current consumption (260 nA quiescent current) and fast transient response, operates at PFM control. The S-85S0P Series realizes high efficiency in a wide range of load current consumption and provides strong support forextended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

DC-DC converter block

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.5 V

• Output voltage:

 0.7 V to 2.5 V, in 0.05 V step

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ V_OUT ≤ 3.9 V)

±15 mV (0.7 V ≤ V_OUT < 1.0 V)

• High side power MOS FET on-resistance: 420 mΩ

• Low side power MOS FET on-resistance: 320 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 300 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function: Hiccup control

• Input and output capacitors: Ceramic capacitor compatible

Supply voltage divider block

• Low current consumption: 280 nA typ.

• Input voltage: 1.5 V to 5.5 V

• Output voltage:

 V_IN/2 (S-85S0PCxx)

 V_IN/3 (S-85S0PDxx)

Overall

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

Supply Voltage Divided Output, 5.5 V Input, 200 mA Synchronous Step-down Switching Regulator with 260 nA Quiescent Current S-85S1P Series

Describe:

The S-85S1P Series introduces own distinctive low power consumption control and COT (Constant On-Time) control and features ultra low current consumption and fast transient response. PWM / PFM switching control automatically switches to PFM control when under light load, and the IC operates at ultra low current consumption of 260 nA quiescent current. The S-85S1P Series realizes high efficiency in a wide range of load current consumption and provides strong support for extended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

DC-DC converter block

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.5 V

• Output voltage:

 0.7 V to 2.5 V, in 0.05 V step

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ VOUT ≤ 3.9 V)

±15 mV (0.7 V ≤ VOUT < 1.0 V)

• Switching frequency: 1.0 MHz (at PWM operation)

• High side power MOS FET on-resistance: 420 mΩ

• Low side power MOS FET on-resistance: 320 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 450 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function:Hiccup control

• Input and output capacitors: Ceramic capacitor compatible

Supply voltage divider block

• Low current consumption: 280 nA typ.

• Input voltage: 1.5 V to 5.5 V

• Output voltage:

 V_IN/2 (S-85S1PCxx)

 V_IN/3 (S-85S1PDxx)

Overall

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

 Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

5.5 V Input, 50 mA Synchronous Step-Down Switching Regulator with 260 nA Quiescent Current S-85S0A Series

Describe:

The S-85S0A Series introduces own distinctive low power consumption control and COT (Constant On-Time) control, features ultra low current consumption (260 nA quiescent current) and fast transient response, operates at PFM control. The S-85S0A Series realizes high efficiency in a wide range of load current consumption and provides strong support for extended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.5 V

• Output voltage: 0.7 V to 2.5 V, in 0.05 V stepr

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ VOUT ≤ 3.9 V)

±15 mV (0.7 V ≤ VOUT < 1.0 V)

• High side power MOS FET on-resistance: 420 mΩ

• Low side power MOS FET on-resistance: 320 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 300 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function:Hiccup control

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

5.5v Input, 200mA Synchronous Step-Down Switching Regulator with 260nA Quiescent Current S-85S1A Series

Describe:

The S-85S1A Series introduces own distinctive low power consumption control and COT (Constant On-Time) control and features ultra low current consumption and fast transient response. PWM / PFM switching control automatically switches to PFM control when under light load, and the IC operates at ultra low current consumption of 260 nA quiescent current. The S-85S1A Series realizes high efficiency in a wide range of load current consumption and provides strong support for extended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.5 V

• Output voltage: 0.7 V to 2.5 V, in 0.05 V step

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ V_OUT ≤ 3.9 V)

±15 mV (0.7 V ≤ V_OUT < 1.0 V)

• Switching frequency: 1.0 MHz (at PWM operation)

• High side power MOS FET on-resistance: 420 mΩ

• Low side power MOS FET on-resistance: 320 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 450 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function:Hiccup control

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

5.6 V Input, 50 mA, Low EMI, Synchronous Step-down Switching Regulator with 260 nA Quiescent Current S-85M0A Series (WLP product)

Describe:

The S-85M0A Series introduces own distinctive low power consumption control and COT (Constant On-Time) control, features ultra low current consumption (260 nA quiescent current) and fast transient response, operates at PFM control. The S-85M0A Series realizes high efficiency in a wide range of load current consumption and provides strong support for extended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.6 V

• Output voltage:

 0.7 V to 2.5 V, in 0.05 V step

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ V_OUT ≤ 3.9 V)

±15 mV (0.7 V ≤ V_OUT < 1.0 V)

• High side power MOS FET on-resistance: 360 mΩ

• Low side power MOS FET on-resistance: 250 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 300 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function: Hiccup control

• Discharge shunt function:

 Unavailable (S-85M0A Series B type)

 Available (S-85M0A Series C type)

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free, halogen-free

Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

• GPS device

5.6 V Input, 200 mA, Low EMI, Synchronous Step-down Switching Regulator with 260 nA Quiescent Current S-85M1A Series (WLP product)

Describe:

The S-85M1A Series introduces own distinctive low power consumption control and COT (Constant On-Time) control and features ultra low current consumption and fast transient response. PWM / PFM switching control automatically switches to PFM control when under light load, and the IC operates at ultra low current consumption of 260 nA quiescent current. The S-85M1A Series realizes high efficiency in a wide range of load current consumption and provides strong support for extended period operation of mobile devices and wearable devices which are equipped with compact batteries.

Features:

• Ultra low current consumption: 260 nA quiescent current

• Efficiency (when under 100 μA load): 90.5%

• Fast transient response: COT control

• Input voltage: 2.2 V to 5.6 V

• Output voltage:

 0.7 V to 2.5 V, in 0.05 V step

 2.6 V to 3.9 V, in 0.1 V step

• Output voltage accuracy:

±1.5% (1.0 V ≤ V_OUT ≤ 3.9 V)

±15 mV (0.7 V ≤ V_OUT < 1.0 V)

• Switching frequency: 1.0 MHz (at PWM operation)

• High side power MOS FET on-resistance: 360 mΩ

• Low side power MOS FET on-resistance: 250 mΩ

• Soft-start function: 1 ms typ.

• Under voltage lockout function (UVLO): 1.8 V typ. (detection voltage)

• Thermal shutdown function: 135°C typ. (detection temperature)

• Overcurrent protection function: 450 mA (at L = 2.2 μH)

• Automatic recovery type short-circuit protection function: Hiccup control

• Discharge shunt function:

 Unavailable (S-85M1A Series B type)

 Available (S-85M1A Series C type)

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free, halogen-free

Applications:

• Wearable device

• Bluetooth device

• Wireless sensor network device

• Healthcare equipment

• Smart meter

• Portable game device

• GPS device

36V Input, 600 mA Synchronous Step-Down Switching Regulator S-8580AC/ S-8580AD/ S-8581AC/ S-8581AD Series

Describe:

The S-8580/8581 Series is a step-down switching regulator developed using high withstand voltage CMOS process technologies.

This IC has high maximum operation voltage of 36 V and maintains high-accuracy FB pin voltage at ±1.5%. As suitable packages for high-density mounting, such as small-sized HSNT-6(2025), are adopted, this IC contributes to miniaturization of electronic equipment.

PWM control (S-8580 Series) or PWM / PFM switching control (S-8581 Series) can be selected as an option.

Since the S-8581 Series, which features PWM / PFM switching control, operates with PWM control under heavy load and automatically switches to PFM control under light load, it achieves high-efficiency operation in accordance with the device’s status. Furthermore, our distinctive PWM / PFM switching control technology suppresses the ripple voltage to be generated in VOUT while PFM control is in operation.

Since the S-8580/8581 Series has the built-in synchronous circuit, it achieves high efficiency easier compared with conventional step-down switching regulators. In addition, it has the built-in overcurrent protection circuit which protects the IC and coils from excessive load current as well as a thermal shutdown circuit which prevents damage from heat generation.

Features:

• Input voltage: 4.0 V to 36.0 V

• Output voltage (externally set): 2.5 V to 12.0 V for industrial equipment

• Output current: 600 mA

• FB pin voltage accuracy: ±1.5% for home electric appliance

• Efficiency: 95%

• Oscillation frequency: 400 kHz typ.

• Overcurrent protection function: 1.2 A typ. (pulse-by-pulse method)

• Thermal shutdown function: 170°C typ. (detection temperature)

• Short-circuit protection function: Hiccup control, Latch control

• 100% duty cycle operation:

• Soft-start function: 5.8 ms typ.

• Under voltage lockout function (UVLO): 3.35 V typ. (detection voltage)

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

 Applications:

• Constant-voltage power supply for industrial equipment

• Constant-voltage power supply for home electric appliance

36V Input, 600 mA Synchronous Step-Down Switching Regulator S-8580AA/S-8580AB/S-8581AA/S-8581AB Series

Describe:

The S-8580/8581 Series is a step-down switching regulator developed using high withstand voltage CMOS process technologies.

This IC has high maximum operation voltage of 36 V and maintains high-accuracy FB pin voltage at ±1.5%. As suitable packages for high-density mounting, such as small-sized HSNT-6(2025), are adopted, this IC contributes to miniaturization of electronic equipment.

PWM control (S-8580 Series) or PWM / PFM switching control (S-8581 Series) can be selected as an option.

Since the S-8581 Series, which features PWM / PFM switching control, operates with PWM control under heavy load and automatically switches to PFM control under light load, it achieves high-efficiency operation in accordance with the device’s status. Furthermore, our distinctive PWM / PFM switching control technology suppresses the ripple voltage to be generated in VOUT while PFM control is in operation.

Since the S-8580/8581 Series has the built-in synchronous circuit, it achieves high efficiency easier compared with conventional step-down switching regulators. In addition, it has the built-in overcurrent protection circuit which protects the IC and coils from excessive load current as well as a thermal shutdown circuit which prevents damage from heat generation.

Features:

• Input voltage: 4.0 V to 36.0 V

• Output voltage (externally set):

 2.5 V to 30.0 V (S-8580 Series) for industrial equipment

 2.5 V to 12.0 V (S-8581 Series)

• Output current: 600 mA

• FB pin voltage accuracy: ±1.5% for home electric appliance

• Efficiency: 91%

• Oscillation frequency: 2.2 MHz typ.

• Overcurrent protection function: 1.2 A typ. (pulse-by-pulse method)

• Thermal shutdown function: 170°C typ. (detection temperature)

• Short-circuit protection function: Hiccup control, Latch control

• 100% duty cycle operation:

• Soft-start function: 5.8 ms typ.

• Under voltage lockout function (UVLO): 3.35 V typ. (detection voltage)

• Input and output capacitors: Ceramic capacitor compatible

• Operation temperature range: Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications:

• Constant-voltage power supply for industrial equipment

• Constant-voltage power supply for home electric appliance

Power Sequencer S-77100/77101 Series

Description

The S-77100/77101 Series is a power sequencer.
The S-77100 Series can output enable signals of 4 channels, and controls the external power supply circuit. The S-77100 Series turns on and off the enable signals successively by changing “H” and “L” of the ON pin.
The S-77101 Series can output enable signals of 3 channels, and controls the external power supply circuit. The S-77101 Series turns on the enable signals successively by changing the ON pin from “L” to “H”, and turns off the enable signals
successively by changing OFF pin from “H” to “L”.
The delay time for each enable signal can be set by the external capacitor.
Also, the small 8-Pin TSSOP or SNT-8A package makes high-density mounting possible.

Features

• Easy support for sequencing of multiple power supplies.

• Delay time can be set by the external capacitor.

• Sequence operations of 4 channels can be controlled by 1 input signal. (S-77100 Series)

• On-sequence operation and off-sequence operation can be controlled by the separate input signal. (S-77101 Series)

• Enable output can be increased by cascade connection.

• Low current consumption

  3.0 μA typ. (Off period, power-good period, Vdd = 3.3 V, Ta = +25°C)

• Wide range of operation voltage

  2.2 V to 5.5 V

• Operation temperature range

  Ta = −40°C to +85°C

• Output form is selectable

  CMOS output, Nch open-drain output

• Output logic is selectable

  Active “H”, active “L”

• Lead-free (Sn 100%), halogen-free

Application

• Power sequencing for multiple devices

• Sequencing for microprocessor and microcontroller

• Power sequencing for FPGA

• Power sequencing for TV, camera, printer, etc.

Voltage Regulation Step-up Charge Pump DC-DC Converter S-8821 Series

Description

The S-8821 series is a CMOS step-up charge pump DC-DC converter with a voltage regulation function.
The S-8821 series consists of an oscillation circuit, a controller, a reference voltage circuit, an error amplifier circuit, and an output switching transistor, and can regulate the output voltage by PFM control.
Since small ceramic capacitors can be used for the pump capacitor, input capacitor, and output capacitor, the mounting area can be minimized.

Features

• Step-up PFM control CMOS charge pump

• Power supply voltage

  1.6 to 5.0 V

• Output voltage

  2.5 to 5.5 V, selectable in 0.1 V steps.

• Output voltage accuracy

  ±2 % max.

• Built-in soft start circuit

  1.0 ms typ.

• Output current

  25 mA (Vin=(Vout(s) × 0.80) V)

• Oscillation frequency

  1.0 MHz typ.

• ON/OFF function

  During standby: 1 µA max.

• Lead-free products

Application

• Lithium ion battery driven applications

• Local power supply

• Power supply for white LED display backlights

Battery Backup Switching IC S-8424A Series

Description

The S-8424A Series is a CMOS IC designed for use in the switching circuits of primary and backup power supplies on a single chip. It consists of two voltage regulators, three voltage detectors, a power supply switch and its controller, as well as other functions.
In addition to the switching function between the primary and backup power supply, the S-8424A Series can provide the microcontrollers with three types of voltage detection output signals corresponding to the power supply voltage.
Moreover adopting a special sequence for switch control enables the effective use of the backup power supply, making this IC ideal for configuring a backup system.

Features

• Low power consumption

  Normal operation: 15 µA max. (V_IN = 6 V)
  Backup: 2.1 µA max.

• Voltage regulator

  Output voltage tolerance±2%
  Output voltage: Independently selectable in 0.1 V steps in the range of 2.3 V to 5.4 V

• Three built-in voltage detectors (CS, PREEND, RESET)

  Detection voltage precision: ±2%
  Detection voltage: Selectable in 0.1 V steps in the range of 2.4 V to 5.3 V (CS voltage detector), Selectable in 0.1 V steps in the range of 1.7 V to 3.4 V (PREEND, RESET voltage detector)

• Switching circuit for primary power supply and backup power supply configurable on one chip

• Efficient use of backup power supply possible

• Special sequence
  Backup voltage is not output when the primary power supply voltage does not reach the initial voltage at which the switch unit operates.

• Lead-free products

Application

• Video camera recorders

• Still video cameras

• Memory cards

• SRAM backup equipment

Battery Backup Switching IC S-8425 Series

Description

The S-8425 Series is a CMOS IC designed for use in the switching circuits of primary and backup power supplies on a single chip. It consists of three voltage regulators, two voltage detectors, a power supply switch and its controller, as well as other functions.
In addition to the function for switching between the primary and backup power supply, the S-8425 Series can provide microcontrollers with two types of voltage detection output signals corresponding to the power supply voltage.
Moreover, adopting a special sequence for switch control enables the effective use of the backup power supply, making this IC ideal for configuring a backup system.

Features

• Low power consumption

  Normal operation: 15 µA max. (Vin = 6 V)
  Backup: 2.1 µA max.

• Voltage regulator

  Output voltage tolerance: ±2%
  Output voltage: Independently selectable in 0.1 V steps in the range of 2.3 V to 5.4 V

• Two built-in voltage detectors (CS, RESET)

  Detection voltage tolerance: ±2%
  Detection voltage:
  Selectable in 0.1 V steps in the range of 2.4 V to 5.3 V (CS voltage detector)
  Selectable in 0.1 V steps in the range of 1.7 V to 3.4 V (RESET voltage detector)

• RESET release delay

  300 µs min.

• Switching circuit for primary power supply and backup power supply configurable on one chip

• Efficient use of backup power supply possible

• Special sequence
  Backup voltage is not output when the primary power supply voltage does not reach the initial voltage at which the switch unit operates.

• Lead-free products

Application

• Camcorders

• Digital cameras

• Memory cards

• SRAM backup equipment

Battery Backup Switching IC S-8426A Series

Description

The S-8426A Series is a CMOS IC designed for use in the switching circuits of primary and backup power supplies on a single chip. It consists of two voltage regulators, three voltage detectors, a power supply switch and its controller, as well as other functions. In addition to the switching function between the primary and backup power supply, the S-8426A Series can provide the micro controllers with three types of voltage detection output signals corresponding to the power supply voltage. Moreover adopting a special sequence for switch control enables the effective use of the backup power supply, making this IC ideal for configuring a backup system.

Features

• Low power consumption

  Normal operation15μA(Vin = 6 V)
  Backup: 4.5μA

• Voltage regulator

  Output voltage tolerance±2%
  Output voltage: Independently selectable in 0.1 V steps in the range of 2.3 to 5.4 V

• Three built-in voltage detectors (CS, PREEND, RESET)

  Detection voltage precision: ±2%
  Detection voltage:
  Selectable in 0.1 V steps in the range of 2.4 to 5.3 V (CS voltage detector)
  Selectable in 0.1 V steps in the range of 1.7 to 3.4 V (PREEND, RESET voltage detector)

• Switching circuit for primary power supply and backup power supply configurable on one chip

• Efficient use of backup power supply possible

• Special sequence

  Backup voltage is not output when the primary power supply voltage does not reach the initial voltage at which the switch unit operates.

• Lead-free products

Application

• Video camera recorders

• Still video cameras

• Memory cards

• SRAM backup equipment

Battery Protection IC for 1-cell Pack S-8240A Series

Description

The S-8240A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits.

The S-8240A Series is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage: 3.5 V to 4.6 V (5 mV step) Accuracy ±20 mV

  Overcharge release voltage: 3.1 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage: 2.0 V to 3.4 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage: 2.0 V to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage: 0.015 V to 0.200 V (5 mV step) Accuracy ±5 mV

  Load short-circuiting detection voltage: 0.065 V to 0.500 V (25 mV step) Accuracy ±40 mV

  Charge overcurrent detection voltage: -0.200 V to -0.015 V (5 mV step) Accuracy ±5 mV

• Detection delay times are generated only by an internal circuit
  (external capacitors are unnecessary).

• 0 V battery charge function is selectable

  Available, unavailable

• Power-down function is selectable

  Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• Release voltage of discharge overcurrent status is selectable

  Vriov, Vdiov

• High-withstand voltage

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 1.5 μA typ., 3.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

  During overdischarge: 500 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 1-cell Pack S-8240B Series

Description

The S-8240B Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits.

The S-8240B Series is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage: 3.5 V to 4.6 V (5 mV step) Accuracy ±20 mV

  Overcharge release voltage: 3.1 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage: 2.0 V to 3.4 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage: 2.0 V to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage: 0.015 V to 0.100 V (1 mV step) Accuracy ±3 mV

  Load short-circuiting detection voltage: 0.065 V to 0.500 V (25 mV step) Accuracy ±40 mV

  Charge overcurrent detection voltage: -0.100 V to -0.015 V (1 mV step) Accuracy ±3 mV

• Detection delay times are generated only by an internal circuit
  (external capacitors are unnecessary).

• 0 V battery charge function is selectable

  Available, unavailable

• Power-down function is selectable

  Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• Release voltage of discharge overcurrent status is selectable

  Vriov, Vdiov

• High-withstand voltage

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 1.5 μA typ., 3.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

  During overdischarge: 500 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 1-Cell Pack S-8200A Series

Description

The S-8200A Series are protection ICs for single-cell lithium-ion / lithium polymer rechargeable batteries and include high-accuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable lithium-ion / lithium polymer battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.5 V to 4.5 V (5 mV steps)

  Accuracy ±20 mV (+25°C) Accuracy ±25 mV (-10°C to +60°C)

  Overcharge release voltage 3.1 V to 4.5 V Accuracy ±30 mV

  Overdischarge detection voltage 2.0 V to 3.4 V (10 mV steps) Accuracy ±35 mV

  Overdischarge release voltage 2.0 V to 3.4 V Accuracy ±50 mV

  Discharge overcurrent detection voltage 0.05 V to 0.20 V (10 mV steps) Accuracy ±10 mV

  Load short-circuiting detection voltage 0.5 V (fixed) Accuracy ±100 mV

  Charge overcurrent detection voltage -0.20 V to -0.05 V (25 mV steps) Accuracy ±15 mV

• Detection delay times are generated by an internal circuit (external capacitors are unnecessary). Accuracy ±20%

• High-withstand voltage (VM pin and CO pin: Absolute maximum rating = 28 V)

• 0 V battery charge function "available" / "unavailable" is selectable.

• Power-down function "available" / "unavailable" is selectable.

• Wide operating temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.8 μA typ.,5.0 μA max. (Ta = +25°C)

  During power-down: 0.1 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC for 1-Cell Pack S-8211C Series

Description

The S-8211C Series are protection ICs for single-cell lithium-ion / lithium-polymer rechargeable batteries and include highaccuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable lithium-ion / lithium-polymer battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.9 to 4.5 V (5 mV steps) Accuracy ±25 mV (+25°C), Accuracy ±30 mV  (−5 to +55°C)

  Overcharge release voltage 3.8 to 4.43 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 to 3.0 V (10 mV steps) Accuracy ±50 mV

  Overdischarge release voltage 2.0 to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage 0.05 to 0.30 V (10 mV steps) Accuracy ±15 mV

  Load short-circuiting detection voltage 0.5 V (fixed) Accuracy ±200mV

  Charge overcurrent detection voltage −0.1 V (fixed) Accuracy ±30 mV

• Detection delay times are generated by an internal circuit (external capacitors are unnecessary). Accuracy ±20%

• High-withstand voltage (VM pin and CO pin: Absolute maximum rating = 28 V)

• 0 V battery charge function available / unavailable are selectable.

• Power-down function available / unavailable are selectable.

• Wide operating temperature range −40 to +85°C

• Low current consumption

  Operation mode 3.0 μA typ., 5.5 μA max. (+25°C)

  Power-down mode 0.2 μA max. (+25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC for 1-Cell Pack S-8211D Series

Description

The S-8211D Series are protection ICs for single-cell lithium-ion / lithium-polymer rechargeable batteries and include high-accuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable lithium-ion / lithium-polymer battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage: 3.6 to 4.5 V (5 mV steps) Accuracy ±25 mV (+25°C), Accuracy ±30 mV (−5 to +55°C)

  Overcharge release voltage: 3.5 to 4.4 V Accuracy ±50 mV

  Overdischarge detection voltage: 2.0 to 3.0 V (10 mV steps) Accuracy ±50 mV

  Overdischarge release voltage: 2.0 to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage: 0.05 to 0.30 V (10 mV steps) Accuracy ±15 mV

  Load short-circuiting detection voltage: 0.5 V (fixed) Accuracy ±200mV

• Detection delay times are generated by an internal circuit (external capacitors are unnecessary). Accuracy ±20%

• High-withstand voltage (VM pin and CO pin: Absolute maximum rating = 28 V)

• 0 V battery charge function "available" / "unavailable" are selectable.

• Power-down function "available" / "unavailable" is selectable.

• Wide operating temperature range: Ta = −40 to +85°C

• Low current consumption

  During operation: 3.0 μA typ., 5.5 μA max. (Ta = +25°C)

  During power-down: 0.2 μA max. (Ta = +25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC for 1-Cell Pack S-8261 Series

Description

The S-8261 series are lithium-ion/lithium polymer rechargeable battery protection ICs incorporating high-accuracy voltage detection circuit and delay circuit.

The S-8261 series are suitable for protection of single-cell lithium ion/lithium polymer battery packs from overcharge, overdischarge and overcurrent.

Features

• Internal high accuracy voltage detection circuit

  Overcharge detection voltage: 3.9V to 4.5V(applicable in 5mV step), Accuracy: ±25mV (+25°C) and ±30mV (-5°C to +55°)

  Overcharge hysteresis voltage: 0.1V to 0.4V, Accuracy: ±25mV

  Overdischarge detection voltage: 2.0V to 3.0V(10mV step), Accuracy: ±50mV

  Overdischarge hysteresis voltage: 0.0V to 0.7V, Accuracy: ±50mV

  Overcurrent 1 detection voltage: 0.05V to 0.3V (10mV step), Accuracy: ±15mV

  Overcurrent 2 detection voltage: 0.5V(fixed), Accuracy: ±100mV

• High-withstand voltage (VM and CO pins: Absolute maximum rating = 28V)

• Delay times (overcharge: tCU, overdischarge: tDL, overcurrent 1: tlOV1, overcurrent 2: tlOV2) are generated by an internal circuit. No external capacitor is necessary. Accuracy: ±20%

• Three-step overcurrent detection circuit is included. (overcurrent 1, overcurrent 2, and load short-circuiting)

• 0 V battery charge function “available” / “unavailable” are selectable.

• Charger detection function and abnormal charge current detection function.
  The overdischarge hysteresis is released by detecting negative voltage at the VM pin (-0.7V typ.).
  (Charger detection function)
  When the output voltage of the DO pin is high and the voltage at the VM pin is equal to or lower than the charger detection voltage (-0.7V typ.), the output voltage of the CO pin goes low. (Abnormal charge current detection function)

• Low current consumption

  Operation: 3.5 μA typ., 7.0 μA max.

  Power-down: 0.1 μA max.

• Wide operating temperature range

  -40°C to +85°C

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium polymer rechargeable battery packs

Battery Protection IC with Charge-discharge Control Function for 1-Cell Pack S-82B1A Series

Description

The S-82B1A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent.

The S-82B1A Series has an input pin for charge-discharge control signal, allowing for charge-discharge control with an external signal.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.5 V to 4.6 V (5 mV step) Accuracy ±20 mV

  Overcharge release voltage 3.1 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.0 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage 2.0 V to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage 1 0.010 V to 0.100 V (1 mV step) Accuracy ±3 mV

  Discharge overcurrent detection voltage 2 0.030 V to 0.200 V (1 mV step) Accuracy ±5 mV

  Load short-circuiting detection voltage 0.050 V to 0.500 V (5 mV step) Accuracy ±20 mV

  Charge overcurrent detection voltage -0.100 V to -0.010 V (1 mV step) Accuracy ±3 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Charge-discharge control function

  CTL pin control logic is selectable: Active “H”, active “L”

  CTL pin internal resistance connection is selectable: Pull-up, pull-down

  CTL pin internal resistance value is selectable: 1.0 MΩ, 2.0 MΩ, 3.0 MΩ, 4.0 MΩ, 5.0 MΩ

• 0 V battery charge function is selectable

  Available, unavailable

• Power-down function is selectable

  Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• Release voltage of discharge overcurrent status is selectable

  Discharge overcurrent detection voltage 1 (Vdiov1),
  Discharge overcurrent release voltage (Vriov) = Vdd × 0.8 (typ.)

• High-withstand voltage

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.0 μA typ., 4.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

  During overdischarge: 500 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC with Discharge Control Function for 1-Cell Pack S-8230A/B Series

Description

The S-8230A/B Series is a protection IC for 1-cell lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits.

The S-8230A/B Series is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, overcurrent, and controlling discharge by external signal.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage: 3.5V to 4.5V(5mV step), Accuracy of ±20mV(Ta = +25°C) , ±25mV(-10°C to +25°C)

  Overcharge release voltage: 3.1V to 4.5V , Accuracy of ±30 mV

  Overdischarge detection voltage: 2.0V to 3.4V (10 mV step), Accuracy of ±35 mV

  Overdischarge release voltage; 2.0V to 3.4V , Accuracy of ±50 mV

  Discharge overcurrent detection voltage: 0.05V to 0.20V (10mV step), Accuracy of ±10mV

  Load short-circuiting detection voltage: 0.5V (fixed), Accuracy of ±100mV

  Charge overcurrent detection voltage:-0.20 V to -0.05 V (25 mV step), Accuracy ±15 mV, -0.16 V to -0.08 V (40 mV step)

• Detection delay times are generated only by an internal circuit (External capacitors are unnecessary).

  Accuracy ±20%

• Discharge control function

  CTL pin control logic is selectable: Active “H”, active “L”

  CTL pin internal resistance connection is selectable: Pull-up, pull-down

  CTL pin internal resistance value is selectable: 1.0 MΩ, 2.5 MΩ, 5.0 MΩ

  Discharge inhibition status latch function is selectable: Available, unavailable

• 0 V battery charge function is selectable

  Available, unavailable

• Power-down function is selectable

  Available, unavailable

• Return condition from discharge overcurrent status is selectable

  Load disconnection, charger connection

• High-withstand voltage device is used for charger connection pins:

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.8 μA typ., 5.5 μA max. (Ta = +25°C)

  During power-down: 0.1 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC with Discharge Control Function for 1-Cell Pack S-8250A Series

Description

The S-8250A Series is a protection IC for 1-cell lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits.

The S-8250A Series is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, overcurrent, and controlling discharge by external signal. By adjusting power supply voltage dependency of discharge overcurrent detection voltage in accordance with ON resistance of the charge-discharge control FET, the S-8250A Series realizes high-accuracy discharge overcurrent detection.

Features

• High-accuracy discharge overcurrent detection circuit

  Discharge overcurrent detection voltage :0.05 V to 0.15 V (1 mV step)
  Accuracy ±10 mV (Ta = +25°C)

  (Power supply voltage dependency can be set in accordance with ON resistance of the charge-discharge control FET.)

• High-accuracy voltage detection circuit

  Overcharge detection voltage :4.1 V to 4.6 V (5 mV step)
  Accuracy ±20 mV (Ta = +25°C)
  Accuracy ±25 mV (Ta = -10°C to +60°C)

  Overcharge release voltage : 3.7 V to 4.6 V Accuracy ±30 mV

  Overdischarge detection voltage : 2.0 V to 2.8 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage : 2.0 V to 3.0 V Accuracy ±100 mV

  Load short-circuiting detection voltage : 0.25 V to 0.50 V (50 mV step)
  Accuracy ±50 mV

  Charge overcurrent detection voltage : -0.20 V to −0.025 V (25 mV step) Accuracy ±15 mV

• Detection delay times are generated only by an internal circuit (External capacitors are unnecessary).

• Discharge control function

  CTL pin control logic is selectable: Active “H”, active “L”

  CTL pin internal resistance connection is selectable: Pull-up, pull-down

  CTL pin internal resistance value is selectable:1.0 MΩ, 2.0 MΩ, 3.0 MΩ,
  4.0 MΩ, 5.0 MΩ

  Discharge inhibition status latch function is selectable : Available, unavailable

• 0 V battery charge function is selectable : Available, unavailable

• Power-down function is selectable: Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• High-withstand voltage device is used for charger connection pins:

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.0 μA typ., 4.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC with Discharge Control Function for 1-Cell Pack S-8250B Series

Description

The S-8250B Series is a protection IC for 1-cell lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits.

The S-8250B Series is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge and overcurrent. By adjusting power supply voltage dependency of discharge overcurrent detection voltage in accordance with ON resistance of the charge-discharge control FET, the S-8250B Series realizes high-accuracy discharge overcurrent detection.

Features

• High-accuracy discharge overcurrent detection circuit

  Discharge overcurrent detection voltage :0.05 V to 0.15 V (1 mV step)
  Accuracy ±10 mV (Ta = +25°C)
  (Power supply voltage dependency can be set in accordance with ON resistance of the charge-discharge control FET.)

• High-accuracy voltage detection circuit

  Overcharge detection voltage :4.1 V to 4.6 V (5 mV step)
  Accuracy ±20 mV (Ta = +25°C)
  Accuracy ±25 mV (Ta = -10°C to +60°C)

  Overcharge release voltage : 3.7 V to 4.6 V Accuracy ±30 mV

  Overdischarge detection voltage : 2.0 V to 2.8 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage : 2.0 V to 3.0 V Accuracy ±100 mV

  Load short-circuiting detection voltage :0.25 V to 0.50 V (50 mV step)
  Accuracy ±50 mV

  Charge overcurrent detection voltage :-0.20 V to -0.05 V (25 mV step)
  Accuracy ±15 mV

• Detection delay times are generated only by an internal circuit (External capacitors are unnecessary).

• 0 V battery charge function is selectable : Available, unavailable

• Power-down function is selectable : Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• High-withstand voltage

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.0 μA typ., 4.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC for 1-Cell Pack S-82A1A Series

Description

The S-82A1A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent.

By using an external overcurrent detection resistor, the S-82A1A Series realizes high-accuracy overcurrent protection with less effect from temperature change.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.5 V to 4.6 V (5 mV step) Accuracy ±20 mV

  Overcharge release voltage 3.1 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.0 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage 2.0 V to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage 1 0.010 V to 0.100 V (1 mV step) Accuracy ±3 mV

  Discharge overcurrent detection voltage 2 0.030 V to 0.200 V (1 mV step) Accuracy ±5 mV

  Load short-circuiting detection voltage 0.050 V to 0.500 V (5 mV step) Accuracy ±20 mV

  Charge overcurrent detection voltage -0.100 V to -0.010 V (1 mV step) Accuracy ±3 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• 0 V battery charge function is selectable

  Available, unavailable

• Power-down function is selectable

  Available, unavailable

• Release condition of discharge overcurrent status is selectable

  Load disconnection, charger connection

• Release voltage of discharge overcurrent status is selectable

  Discharge overcurrent detection voltage 1 (Vdiov1),
  Discharge overcurrent release voltage (Vriov) = Vdd × 0.8 (typ.)

• High-withstand voltage

  VM pin and CO pin: Absolute maximum rating 28 V

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 2.0 μA typ., 4.0 μA max. (Ta = +25°C)

  During power-down: 50 nA max. (Ta = +25°C)

  During overdischarge: 500 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 2-Serial Cell Pack S-8252 Series

Description

The S-8252 Series are protection ICs for 2-serial-cell lithium-ion / lithium polymer rechargeable batteries and include highaccuracy voltage detectors and delay circuits.These ICs are suitable for protecting 2-serial-cell rechargeable lithium-ion / lithium polymer battery packs from overcharge,overdischarge, and overcurrent.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n = 1, 2):3.55 V to 4.6 V (5 mV steps) Accuracy ±20 mV (+25°C), Accuracy ±25 mV (-10°C to +60°C)

  Overcharge release voltage n (n = 1, 2):3.15 V to 4.6 V Accuracy ±30 mV

  Overdischarge detection voltage n (n = 1, 2):2.0 V to 3.0 V (10 mV steps) Accuracy ±50 mV

  Overdischarge release voltage n (n = 1, 2):2.0 V to 3.4 V Accuracy ±100 mV

  Discharge overcurrent detection voltage:0.05 V to 0.4 V (10 mV steps) Accuracy ±10 mV

  Load short-circuiting detection voltage:0.5 V (fixed) Accuracy ±100 mV

  Charge overcurrent detection voltage:-0.4 V to -0.05 V (25 mV steps) Accuracy ±20 mV

• Charge overcurrent detection function “available” / “unavailable” is selectable.

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary). Accuracy ±20%

• High-withstanding-voltage (VM pin and CO pin Absolute maximum rating = 28 V)

• 0 V battery charge function available / unavailable are selectable.

• Power-down function “available” / “unavailable” is selectable.

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  Operation mode:8.0 μA max. (+25°C)

  Power-down mode:0.1 μA max. (+25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 2-Serial Cell Pack S-8262A Series

Description

The S-8262A Series is a protection IC for 2-serial-cell lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detectors and delay circuits.

The S-8262A Series has an alarm signal output pin (AO pin) which outputs the alarm detection signal.

The alarm detection signal is output prior to the charge control FET signal by overcharge detection.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n = 1, 2) : 3.900 V to 4.500 V (5 mV steps)

  Accuracy ±20 mV (Ta = +25°C), Accuracy ±25 mV (Ta = -10°C to +60°C) Overcharge release voltage n (n = 1, 2) : 3.800 V to 4.500 V

  Accuracy ±30 mV
  Overdischarge detection voltage n (n = 1, 2) : 2.00 V to 3.00 V (10 mV steps)

  Accuracy ±50 mV
  Overdischarge release voltage n (n = 1, 2) : 2.00 V to 3.40 V

  Accuracy ±100 mV
  Discharge overcurrent 1 detection voltage : 0.05 V to 0.20 V (10 mV steps)

  Accuracy ±10 mV
  Discharge overcurrent 2 detection voltage : 0.20 V to 0.40 V (20 mV steps)

  Accuracy ±20 mV
  Load short-circuiting detection voltage : 0.70 V (fixed)

  Accuracy ±100 mV
  Charge overcurrent detection voltage : -0.400 V to -0.050 V (25 mV steps)

  Accuracy ±20 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary). Accuracy ±20%

• High-withstanding-voltage device is used for charger connection pins (VM pin and CO pin: Absolute maximum rating = 28 V)

• 0 V battery charge function “available” / “unavailable” is selectable.

• Wide operating temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 8.0 μA max. (Ta = +25°C)

  During power-down: >0.1 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium polymer rechargeable battery packs

Battery Protection IC for 2-Serial or 3-Serial Cell Pack S-8253C/D Series

Description

The S-8253C/D Series is a protection ICs for 2-series or 3-series cell lithium-ion rechargeable battery and includes high-accuracy voltage detector and delay circuit. This IC is suitable for protecting lithium-ion battery packs from overcharge, overdischarge and overcurrent.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n =1 to 3): 3.9 V to 4.4 V (50 mV steps) Accuracy ±25 mV

  Overcharge release voltage n (n =1 to 3): 3.8 V to 4.4 V  Accuracy ±50 mV

  Overdischarge detection voltage n (n =1 to 3): 2.0 V to 3.0 V (100 mV steps) Accuracy ±80 mV

  Overdischarge release voltage n (n =1 to 3): 2.0 V to 3.4 V  Accuracy ±100 mV

• Three-level overcurrent detection (including load short circuiting detection)

  Overcurrent detection voltage 1: 0.05 V to 0.30 V (50 mV steps) Accuracy ±25 mV

  Overcurrent detection voltage 2: 0.5 V (fixed)

  Overcurrent detection voltage 3: 1.2 V (fixed)

• Delay time (Overcharge, Overdischarge, Overcurrent) is available by only using an internal circuit. (External capacitors are unnecessary).

• Charge / discharge operation can be inhibited by the control pin.

• With/without 0 V battery charge function selectable.

• High-withstand voltage

  Absolute maximum rating: 26 V

• Wide operating voltage range

  2 V to 24 V

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  Operation mode 28 μA max. (25°C)

  Power-down mode 0.1 μA max. (25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium polymer rechargeable battery packs

Battery Protection IC for 3-Cell Serial Pack S-8243A Series

Description

The S-8243A/B is a series of lithium-ion rechargeable battery protection ICs incorporating high-accuracy battery protection circuits, a battery monitor amp and a voltage regulator.

The S-8243A/B is suitable for protection of 3-serial or 4- serial cell lithium-ion battery packs from overcharge, overdischarge and overcurrent.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n= 1 to 4): 3.9V to 4.4V (50mV step), Accuracy ±25mV

  Hysteresis voltage n(n=1 to 4) of overcharge detection: -0.10V to -0.40V (50mV step) or 0V, Accuracy ±50mV
  (Overcharge release voltage n(=Overcharge detection voltage n +Hysteresis voltage n) can be selected within the range 3.8V to 4.4V.)

  Overdischarge detection voltage n(n=1 to 4): 2.0V to 3.0V (100mV step), Accuracy ±80 mV

  Hysteresis voltage n(n=1 to 4) of overdischarge detection: 0.20V to 0.70V or 0V(100mV step), Accuracy ±100mV
  (Overdischarge release voltage n (=Overdischarge detection voltage n +Hysteresis voltage n) can be selected within the range 2.0V to 3.4V.)

• Three-level overcurrent protection including protection for short-circuiting

  Overcurrent detection voltage 1: 0.05V to 0.3V (50mV step), Accuracy ±25mV

  Overcurrent detection voltage 2: 0.5V, Accuracy ±100mV

  Overcurrent detection voltage 3: V_DD/2, Accuracy ±15 %

• Delay times for overcharge detection, overdischarge detection and overcurrent detection 1 can be set by external capacitors. (Delay times for overcurrent detection 2 and 3 are fixed internally.)

• Charge/discharge operation can be controlled through the control pins.

• High-accuracy battery monitor amp

  GAMP =V_BATTERY × 0.2 ±1.0%

• Voltage regulator

  V_OUT =3.3V ±2.4% (3mA max.)

• High-withstand voltage

  Absolute maximum rating: 26V

• Wide operating voltage range

  6V to 18V

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  Operation mode 120 μA max.

  Power down mode 0.1 μA max.

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium- polymer rechargeable battery packs

Battery Protection IC for 3-Serial or 4-Serial-Cell Pack S-8254A Series

Description

The S-8254A series is a protection IC for 3-serial or 4-serial cell lithium ion rechargeable batteries and includes a high-accuracy voltage detector and delay circuit.

The S-8254 series protects both 3-serial or 4-serial cells using the SEL pin for switching.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n(n=1 to 4): 3.9 V to 4.4 V (50 mV steps) Accuracy ±25 mV

  Overcharge release voltage n(n=1 to 4): 3.8 V to 4.4 V Accuracy ±50 mV

  Overdischarge detection voltage n(n =1 to 4): 2.0 V to 3.0 V (100 mV steps) Accuracy ±80mV

  Overdischarge release voltage n(n=1 to 4): 2.0 V to 3.4 V Accuracy ±100 mV

• Three-level overcurrent protection

  Overcurrent detection voltage 1: 0.05 V to 0.3 V (50 mV steps) Accuracy ±25 mV

  Overcurrent detection voltage 2: 0.5 V Accuracy ±100 mV

  Overcurrent detection voltage 3: VC1-1.2 V Accuracy ±300 mV

• Delay times for overcharge detection, overdischarge detection and overcurrent detection 1 can be set by external capacitors. (Delay times for overcurrent detection 2 and 3 are fixed internally.)

• Switchable between a 3-serial cell and 4-serial cell using the SEL pin

• Charge/discharge operation can be controlled via the control pins.

• High-withstand voltage

  Absolute maximum rating: 26 V

• Wide operating voltage range

  2 V to 24 V

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  Operation mode 30 μA max.(+25°C),

  Power-down mode 0.1 μA max. (+25°C)

• Lead-free, Sn100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

Battery Protection IC for 3-Serial or 4-Serial-Cell Pack S-8204A Series

Description

The S-8204A Series includes high-accuracy voltage detection circuits and delay circuits, in single use, makes it possible for users to monitor the status of 3-series or 4-series cell lithium-ion rechargeable battery. By switching the voltage level which is applied to the SEL pin, users are able to use the S-8204A Series either for 3-series or 4-series cell pack. By cascade connection using the S-8204A Series, it is also possible to protect 6-series or more cells(*1) lithium-ion rechargeable battery pack.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n(n=1 to 4): 3.8 V to 4.6 V (50 mV steps) Accuracy ±25 mV

  Overcharge release voltage n(n=1 to 4): 3.6 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage n(n =1 to 4): 2.0 V to 3.0 V (100 mV steps) Accuracy ±80mV

  Overdischarge release voltage n(n=1 to 4): 2.0 V to 3.4 V Accuracy ±100 mV

• Discharge overcurrent detection in 3-step

  Discharge overcurrent detection voltage 1: 0.05 to 0.30 V (50 mV steps) Accuracy ±15 mV

  Discharge overcurrent detection voltage 2: 0.5 V (fixed) Accuracy ±100 mV

  Short circuit detection voltage: 1.0 V (fixed) Accuracy ±300 mV

• Charge overcurrent detection

  Charge overcurrent detection voltage: -0.25 to -0.05 V (50 mV step) Accuracy ±30 mV

• Settable by external capacitor; Overcharge detection delay time, Overdischarge detection delay time, Discharge overcurrent detection delay time 1, Discharge overcurrent detection delay time 2
  (Short circuit detection voltage delay time is internally fixed.)

• Switchable between 3-series and 4-series cell by using the SEL pin

• Independent charging and discharge control by the control pins

• High-withstand voltage

  Absolute maximum rating: 24 V

• Wide operating voltage range

  2 V to 22 V

• Wide range of operation temperature

  Ta = -40°C to +85°C

• Low current consumption

  Operation mode 33 μA max.(Ta = +25°C)

  Power-down mode 0.1 μA max. (Ta = +25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

Battery Protection IC for 3-Serial or 4-Serial-Cell Pack S-8204B Series

Description

The S-8204B Series includes high-accuracy voltage detection circuits and delay circuits, in single use, makes it possible for users to monitor the status of 3-series or 4-series cell lithium-ion rechargeable battery. By switching the voltage level which is applied to the SEL pin, users are able to use the S-8204B Series either for 3-series or 4-series cell pack. By cascade connection using the S-8204B Series, it is also possible to protect 6-series or more cells lithium-ion rechargeable battery pack.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n(n=1 to 4): 3.8 V to 4.6 V (50 mV steps) Accuracy ±25 mV

  Overcharge release voltage n(n=1 to 4): 3.6 V to 4.6 V  Accuracy ±50 mV

  Overdischarge detection voltage n(n =1 to 4): 2.0 V to 3.0 V (100 mV steps) Accuracy ±80mV

  Overdischarge release voltage n(n=1 to 4): 2.0 V to 3.4 V  Accuracy ±100 mV

• Discharge overcurrent detection in 3-step

  Discharge overcurrent detection voltage 1: 0.05 to 0.30 V (50 mV steps) Accuracy ±15 mV

  Discharge overcurrent detection voltage 2: 0.5 V (fixed) Accuracy ±100 mV

  Short circuit detection voltage: 1.0 V (fixed) Accuracy ±300 mV

• Settable by external capacitor; Overcharge detection delay time, Overdischarge detection delay time, Discharge overcurrent detection delay time 1, Discharge overcurrent detection delay time 2
  (Short circuit detection voltage delay time is internally fixed.)

• Switchable between 3-series and 4-series cell by using the SEL pin

• Independent charging and discharge control by the control pins

• High-withstand voltage

  Absolute maximum rating: 24 V

• Wide operating voltage range

  2 V to 22 V

• Wide range of operation temperature

  -40°C to +85°C

• Low current consumption

  Operation mode 33 μA max.(+25°C)

  Power-down mode 0.1 μA max. (+25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

Battery Monitoring IC for 3-Serial to 5-Serial Cell Pack S-8225A Series

Description

The S-8225A Series includes a voltage detection circuit with high accuracy and a delay circuit, and can monitor the status of 3-serial to 5-serial cell lithium-ion rechargeable battery in single use. By switching the voltage level which is applied to the SEL1 pin and SEL2 pin, users are able to use the S-8225A Series for 3-serial to 5-serial cell pack.

By cascade connection using the S-8225A Series, it is also possible to protect 6-serial or more cells rechargeable lithium-ion battery pack.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n = 1 to 5): 3.5 V to 4.4 V (50 mV step), Accuracy ±20 mV (Ta = +25°C), ±30 mV (Ta = 0°C to +60°C)

  Overcharge release voltage n (n = 1 to 5): 3.3 V to 4.4 V^*1 , Accuracy ±50 mV

  Overdischarge detection voltage n (n = 1 to 5): 2.0 V to 3.2 V (100 mV step) , Accuracy ±80 mV

  Overdischarge release voltage n (n = 1 to 5): 2.0 V to 3.4 V^*2 , Accuracy ±100 mV

• Overcharge detection delay time and overdischarge detection delay time can be set by external capacitor.

• Switchable between 3-serial to 5-serial cell by using the SEL1 pin and the SEL2 pin

• Cascade connection is available.

• The CO pin and the DO pin are controlled by the CTLC pin and the CTLD pin, respectively.

• Output voltage of the CO pin and the DO pin is limited to 12 V max.

• High-withstand voltage

  Absolute maximum rating: 28 V

• Wide operating voltage range

  4 V to 26 VWide operating temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation (V1 = V2 = V3 = V4 = V5 = 3.4 V) 22 μA max. (Ta = +25°C)

  During power-down (V1 = V2 = V3 = V4 = V5 = 1.6 V) 4.5 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Rechargeable lithium-ion battery pack

Battery Monitoring IC for 3-Serial to 5-Serial Cell Pack S-8225B Series

Description

The S-8225B Series includes a voltage detection circuit with high accuracy and a delay circuit, and can monitor the status of 3-serial to 5-serial cell lithium-ion rechargeable battery in single use. By switching the voltage level which is applied to the SEL1 pin and SEL2 pin, users are able to use the S-8225B Series for 3-serial to 5-serial cell pack.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n = 1 to 5): 3.5 V to 4.4 V (50 mV step), Accuracy ±20 mV (Ta = +25°C), ±30 mV (Ta = 0°C to +60°C)

  Overcharge release voltage n (n = 1 to 5): 3.3 V to 4.4 V , Accuracy ±50 mV

  Overdischarge detection voltage n (n = 1 to 5): 2.2 V to 3.2 V (100 mV step) , Accuracy ±80 mV

  Overdischarge release voltage n (n = 1 to 5): 2.2 V to 3.4 V , Accuracy ±100 mV

• Overcharge detection delay time and overdischarge detection delay time can be set by external capacitor.

• Switchable between 3-serial to 5-serial cell by using the SEL1 pin and the SEL2 pin

• The CO pin and the DO pin are controlled by the CTLC pin and the CTLD pin, respectively.

• Output voltage of the CO pin and the DO pin is limited to 12 V max.

• Output logic is selectable.

  Active “H”, active “L”

• High-withstand voltage

  Absolute maximum rating: 28 V

• Wide operating voltage range

  4 V to 26 V

• Wide operating temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation (V1 = V2 = V3 = V4 = V5 = 3.4 V) : 20 μA max. (Ta = +25°C)

  During power-down (V1 = V2 = V3 = V4 = V5 = 1.6 V): 3.0 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Rechargeable lithium-ion battery pack

Battery Protection IC for 4-Series or 5-Series Cell Pack S-8205A/B Series

Description

The S-8205A/B Series includes a voltage detection circuit with high accuracy and a delay circuit, in single use, makes it possible for users to monitor the status of 4-series or 5-series cell lithium-ion rechargeable battery. These ICs are suitable for protecting rechargeable lithium-ion battery packs from overcharge, overdischarge, and overcurrent.

Features

• High-accuracy voltage detection for each cell

  Overcharge detection voltage n (n = 1 to 5) 3.55 V to 4.50 V (50 mV step) Accuracy ±25 mV

  Overcharge release voltage n (n = 1 to 5) 3.30 V to 4.50 V Accuracy ±50 mV

  Overdischarge detection voltage n (n = 1 to 5) 2.0 V to 3.2 V (100 mV step) Accuracy ±80 mV

  Overdischarge release voltage n (n = 1 to 5) 2.0 V to 3.4 V Accuracy ±100 mV

• Discharge overcurrent detection in 2-step

  Discharge overcurrent detection voltage 0.05 V to 0.30 V (50 mV step) Accuracy ±15 mV

  Short circuit detection voltage 0.50 V to 1.0 V (100 mV step) Accuracy ±100 mV

• Charge overcurrent detection

  Charge overcurrent detection voltage -0.30 V to -0.05 V (50 mV step) Accuracy ±30 mV

• Settable by external capacitor; Overcharge detection delay time, Overdischarge detection delay time, Discharge overcurrent detection delay time, Charge overcurrent detection delay time (Load short circuit detection delay time is internally fixed.)

• S-8205A Series: used for 4-series cell, S-8205B Series: used for 5-series cell

• Independent charging and discharge control by the control pins

• Products with and without a power-down function can be selected.

• Withstand voltage element Absolute maximum rating

  28 V

• Wide range of operation voltage

  2 V to 24 V

• Wide range of operation temperature

  -40°C to +85°C

• Low current consumption

  Operation mode 40 μA max. (+25°C)

  Power-down mode 0.1 μA max. (+25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery packs

Battery Protection IC for 1-cell Pack (Secondary Protection) S-8206A Series

Description

The S-8206A Series is used for secondary protection of lithium-ion / lithium polymer rechargeable batteries, and incorporates a high-accuracy voltage detection circuit and a delay circuit.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.50V to 5.00V(5mV step) Accuracy ±20 mV

  Overcharge release voltage 3.10V to 4.95V Accuracy ±50 mV

• Detection delay time is generated only by an internal circuit
  (external capacitors are unnecessary).

• Output logic is selectable

  Active “H”, active “L”

• Output form is selectable

  CMOS output, Nch open-drain output

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 1.5 μA typ., 3.0 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 1 to 4 Cells (Secondary Protection) S-8244 Series

Description

The S-8244 series is used for secondary protection of lithium-ion batteries with from one to four cells, and incorporates a high-precision voltage detector circuit and a delay circuit. Short-circuits between cells accommodate series connection of one to four cells.

Features

• Internal high-precision voltage detector circuit

  1) Overcharge detection voltage range:
      3.70 to 4.50V(at a 5 mV/step): Accuracy of ± 25mV (at +25°C), Accuracy ±50mV (at -40 to +85°C),
  2) Hysteresis: 5 optional models available and selectable:
      0.38 ± 0.1V, 0.25 ± 0.07V, 0.13 ± 0.04V, 0.045 ± 0.02V, None

• High-withstand voltage

  Absolute maximum rating: 26V

• Wide operating voltage range

  3.6V to 24V (refers to the range in which the delay circuit can operate normally after overvoltage is detected)

• Delay time during detection

  Can be set by an external capacitor.

• Low current consumption

  At 3.5V for each cell: 3.0 μA max. (+25°C),
  At 2.3V for each cell: 2.4 μA max. (+25°C)

• Output logic and form – 5 types

  CMOS output active “H”
  CMOS output active “L”
  Pch open drain output active “L”
  Nch open drain output active “H”
  Nch open drain output active “L”
  (CMOS / Nch open drain output for 0.045 V hysteresis models)

• Lead-free, Sn 100%, halogen-free

Applications

• Secondary protection of lithium ion rechargeable batteries

Battery Protection IC for 2-Serial / 3-Serial Cell Pack (Secondary Protection) S-8213 Series

Description

The S-8213 Series is used for secondary protection of lithium-ion rechargeable batteries, and incorporates a high-accuracy voltage detection circuit and a delay circuit. Short-circuits between VC3 to VSS accommodate serial connection of two cells or three cells.

Features

• High-accuracy voltage detection circuit for each cell

  Overcharge detection voltage n (n = 1 to 3)
  4.10 V to 4.50 V (in 50 mV steps)
  Accuracy: ±25 mV (Ta = +25°C)
  Accuracy: ±30 mV (Ta = 0°C to +60°C)

  Overcharge hysteresis voltage n (n = 1 to 3)
  0 V ± 25 mV, -0.05 V ± 25 mV, -0.4 V ± 80 mV

• Delay times for overcharge detection can be set by an internal circuit only (external capacitors are unnecessary)

• Output logic is selectable

  Active “H”, Active “L”

• High-withstand voltage

  Absolute maximum rating 26 V

• Wide operating voltage range

  3.6 V to 24 V

• Wide operating temperature range

  Ta = -40°C to +85°C

• Low current consumption

  At VCUn – 1.0 V for each cell: 2.0 μA max. (Ta = +25°C)

  At 2.0 V for each cell: 0.3 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free




Applications

• Lithium-ion rechargeable battery pack (for secondary protection)

Battery Protection IC for 2-Serial to 4-Serial-cell Pack (Secondary Protection) S-8264A/B/C Series

Description

The S-8264A/B/C Series is used for secondary protection of lithium-ion rechargeable batteries, and incorporates a high-accuracy voltage detection circuit and a delay circuit. Short-circuits between cells accommodate series connection of two to four cells.

Features

• High-accuracy voltage detection circuit for each cell

  Overcharge detection voltage n (n = 1 to 4) 4.20 V to 4.80 V (in 50 mV steps)
  Accuracy ±25 mV (+25°C), Accuracy ±30 mV (-5°C to +55°C)

  Overcharge hysteresis voltage n (n = 1 to 4) -0.52 ±0.21 V, -0.39 ±0.16 V, -0.26 ±0.11 V, -0.13 ±0.06 V, None

• Delay times for overcharge detection can be set by an internal circuit only (external capacitors are unnecessary)

• Output control function via CTL pin (CTL pin is pulled down internally) (S-8264A Series)
  Output control function via CTL pin (CTL pin is pulled up internally) (S-8264C Series)

• Output latch function after overcharge detection (S-8264B Series)

• Output form and logic

  CMOS output active “H”

• High withstand voltage devices

  Absolute maximum rating: 26 V

• Wide operating voltage range

  3.6 V to 24 V

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  At 3.5 V for each cell: 5.0 μA max. (+25°C)

  At 2.3 V for each cell: 4.0 μA max. (+25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs (for secondary protection)

Battery Protection IC for 3-Serial to 5-Serial Cell Pack (Secondary Protection) S-8215A Series

Description

The S-8215A Series is used for secondary protection of lithium-ion rechargeable batteries, and incorporates high-accuracy voltage detection circuits and delay circuits. Short-circuiting between cells makes it possible for serial connection of 3 cells to 5 cells.

Features

• High-accuracy voltage detection circuit for each cell

  Overcharge detection voltage n (n = 1 to 5)
   3.60 V to 4.70 V (in 50 mV steps)
   Accuracy ±25 mV (+25°C)
   Accuracy ±30 mV (−5°C to +55°C)

  Overcharge hysteresis voltage n (n = 1 to 5)
   0.0 mV to −550 mV (in 50 mV steps)
   −300 mV to −550 mV Accuracy ±20%
   −100 mV to −250 mV Accuracy ±50 mV
   0.0 mV to−50 mV  Accuracy ±25 mV

• Delay times for overcharge detection can be set by an internal circuit only (external capacitors are unnecessary)

• Output form is selectable

  CMOS output, Nch open-drain output, Pch open-drain output

• Output logic is selectable

  Active “H”, Active “L”

• High withstand voltage

  Absolute maximum rating: 28 V

• Wide operating voltage range

  3.6 V to 26 V

• Wide operating temperature range

  −40°C to +85°C

• Low current consumption

   At Vcun – 1.0 V for each cell: 3.0 μA max. (+25°C)

   At 2.3 V for each cell: 1.7 μA max. (+25°C)

• Lead-free, Sn 100%, halogen-free (Refer to “Product Name Structure” for details.)

Applications

• Lithium-ion rechargeable battery packs (for secondary protection)

Battery Monitoring IC for 1-cell Pack S-8259A Series

Description

The S-8259A Series is an IC including high-accuracy voltage detection circuits and delay circuits.

The S-8259A Series is suitable for monitoring overcharge and overdischarge for 1-cell lithium-ion / lithium polymer rechargeable battery packs.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage: 3.5 V to 4.6 V (5 mV step) Accuracy ±20 mV

  Overcharge release voltage: 3.1 V to 4.6 V Accuracy ±50 mV

  Overdischarge detection voltage: 2.0 V to 3.4 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage 2.0 V to 3.4 V Accuracy ±100 mV

• Detection delay times are generated only by an internal circuit
  (external capacitors are unnecessary).

• Wide operation temperature range

  Ta = -40°C to +85°C

• Low current consumption

  During operation: 1.5 μA typ., 3.0 μA max. (Ta = +25°C)

  During overdischarge: 2.0 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC for 1-Cell Pack S-8211E Series

Description

The S-8211E Series has the high-accuracy voltage detection circuit and the delay circuit. This IC is suitable for monitoring overcharge and overdischarge of 1-cell lithium ion / lithium polymer secondary battery pack.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.6 V to 4.5 V (5 mV step) Accuracy ±25 mV (+25°C) / Accuracy ±30 mV (-5°C to +55°C

  Overcharge release voltage 3.5 V to 4.4 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.0 V (10 mV step) Accuracy ±50 mV

  Overdischarge release voltage 2.0 V to 3.4 V Accuracy ±100 mV

• Detection delay times are generated by an internal circuit (external capacitors are unnecessary) Accuracy ±20%

• Wide operating temperature range

  -40°C to +85°C

• Low current consumption

  Operation mode 3.0 μA typ., 5.5 μA max. (+25°C)

  Overdischarge mode 2.0 μA typ., 3.5 μA max. (+25°C)

• Lead-free, Sn 100%, halogen-free

Applications

• Lithium-ion rechargeable battery packs

• Lithium-polymer rechargeable battery packs

Battery Protection IC with Cell-Balance Function S-8209A Series

Description

The S-8209A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes a high-accuracy voltage detection circuit and a delay circuit. This IC has a transmission function and two types of cell-balance function so that users are also able to configure a protection circuit with series multi-cell.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.9 V to 4.4 V (5 mV step) Accuracy ±25 mV

  Overcharge release voltage 3.8 V to 4.4 V Accuracy ±50 mV

  Cell-balance detection voltage 3.9 V to 4.4 V (5 mV step) Accuracy ±25 mV

  Cell-balance release voltage 3.8 V to 4.4 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.0 V (10 mV step) Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.4 V Accuracy ±100 mV

• Settable delay time by external capacitor for output pin

• Control charging, discharging, cell-balance by CTLC, CTLD pins

• Two types of cell-balance function; charge/discharge

• Wide range of operation temperature

  −40°C to +85°C

• Low current consumption

  7.0 μA max.

• Lead-free product

Applications

• Lithium-ion rechargeable battery packs

• Lithium polymer rechargeable battery packs

Battery Protection IC with Cell-Balance Function S-8209B Series

Description

The S-8209B Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes a high-accuracy voltage detection circuit and a delay circuit. This IC has a transmission function and two types of cell-balance function so that users are also able to configure a protection circuit with series multi-cell.

Features

• High-accuracy voltage detection circuit

  Overcharge detection voltage 3.9 V to 4.4 V (5 mV step) Accuracy ±25 mV

  Overcharge release voltage 3.8 V to 4.4 V Accuracy ±50 mV

  Cell-balance detection voltage 3.9 V to 4.4 V (5 mV step) Accuracy ±25 mV

  Cell-balance release voltage 3.8 V to 4.4 V Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.0 V (10 mV step) Accuracy ±50 mV

  Overdischarge detection voltage 2.0 V to 3.4 V Accuracy ±100 mV

• Settable delay time by external capacitor for output pin

• Control charging, discharging, cell-balance by CTLC, CTLD pins

• Two types of cell-balance function; charge/discharge

• Wide range of operation temperature

  −40°C to +85°C

• Low current consumption

  7.0 μA max.

• Lead-free product

Applications

• Lithium-ion rechargeable battery packs

• Lithium polymer rechargeable battery packs

Battery Monitoring IC S-8229 Series

Description

The S-8229 Series is a battery monitoring IC developed using CMOS technology. Compared with conventional CMOS voltage detectors, the S-8229 Series is ideal for the applications that require high-withstand voltage due to its maximum operation voltage as high as 24 V. The S-8229 Series is capable of confirming the voltage in stages since it detects three voltage values.

Features

• Detection voltage accuracy

  ±1.0%

• Hysteresis characteristics

  VHYS1 to VHYS3 = 0 mV, 50 mV, 300 mV, 400 mV, 500 mV

• Current consumption

  During operation: IDD1 = 9.0 μA max. (-VDETtotal≥42 V)
  IDD1 = 11.0 μA max. (-VDETtotalDuring power-off: IDD2 = 0.1 μA max.

• Operation voltage range

  VDD = 3.6 V to 24 V

• Detection voltage

  -VDET1(S) to -VDET3(S)= 10.5 V to 21.5 V (0.1 V step)

• Output form

  Nch open-drain output

• Output logic

  Full charge all on, full charge all off

• Operation temperature range

  Ta = -40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Rechargeable lithium-ion battery pack

Overcurrent Monitoring IC For Multi-Serial-Cell Pack S-8239A Series

Description

The S-8239A Series is an overcurrent monitoring IC for multi-serial-cell pack including high-accuracy voltage detection circuits and delay circuits.

The S-8239A Series is suitable for protection of lithium-ion / lithium polymer rechargeable battery packs from overcurrent.

Features

• Built-in high-accuracy voltage detection circuit
  Overcurrent 1 detection voltage,±15 mV,0.04 V to 0.30 V (10 mV step) Accuracy
  ±100 mV,Overcurrent 2 detection voltage : 0.2 V to 0.7 V (100 mV step) Accuracy
  Overcurrent 3 detection voltage : 1.2 V (Fixed) Accuracy ±300 mV

• Built-in two-step overcurrent detection circuit (Overcurrent 1, overcurrent 2, overcurrent 3)

• Overcurrent 3 detection function is selectable : Available, unavailable

• UVLO (under voltage lock out) function
  Accuracy ±100 mV,UVLO detection voltage2.0 V (Fixed)

• High-withstand voltage

  VM pin, DO pin: Absolute maximum rating 28 V

• Delay times are generated only by an internal circuit (External capacitors are unnecessary).

• Low current consumption
  During normal operation 7.0 μA max.
  During UVLO operation 6.0 μA max.

• Output logic Active “L”, Active “H”

•  Ta = -40°C to +85°C Wide operation temperature range

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Overcurrent Monitoring IC For Multi-Serial-Cell Pack S-8239B Series

Description

The S-8239B Series is an overcurrent monitoring IC for multi-serial-cell pack including high-accuracy voltage detection circuits and delay circuits.

The S-8239B Series is suitable for protection of lithium-ion / lithium polymer rechargeable battery packs from overcurr

Features

• Built-in high-accuracy voltage detection circuit

  Overcurrent 1 :detection voltage 0.04 V to 0.30 V (10 mV step),
  Accuracy ±15 mV

  Overcurrent 2 :detection voltage 0.1 V to 0.7 V (100 mV step),
  Accuracy ±100 mV

  Overcurrent 3 :detection voltage 1.2 V (Fixed),
  Accuracy ±300 mV

• Built-in three-step overcurrent detection circuit

  Overcurrent 1, overcurrent 2, overcurrent 3

• Overcurrent 3 detection function is selectable

  Available, unavailable

• UVLO (under voltage lock out) function

  UVLO detection voltage : 2.0 V (Fixed), Accuracy ±100 mV

• High-withstand voltage

  VM pin, DO pin: Absolute maximum rating 28 V

• Delay times are generated only by an internal circuit
  (External capacitors are unnecessary).

• Low current consumption

  During normal operation: 7.0 μA max.

  During power-down: 0.1 μA max.

• Output logic

  Active “L”

• Wide operation temperature range

  Ta = -40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Voltage Monitoring IC with Cell Balancing Function S-8249 Series

Description

The S-8249 Series is a voltage monitoring IC with a cell balancing function and includes a high-accuracy voltage detection circuit and a delay circuit.

The S-8249 Series is suitable for cell balancing and overcharge protection of batteries and capacitors.

Features

• High-accuracy voltage detection circuit

  Cell balancing detection voltage: 2.0 V to 4.6 V (5 mV step)
  Accuracy ±12 mV (2.0 V≦Vbu＜2.4 V), Accuracy ±0.5% (2.4 V≦Vbu≦4.6 V)

  Cell balancing release voltage: 2.0 V to 4.6 V
  Accuracy ±24 mV (2.0 V≦Vbl＜2.4 V) , Accuracy ±1.0% (2.4 V≦Vbl≦4.6 V)

  Overcharge detection voltage: 2.0 V to 4.6 V (5 mV step)
  Accuracy ±12 mV (2.0 V≦Vcu＜2.4 V) , Accuracy ±0.5% (2.4 V≦Vcu≦4.6 V)

  Overcharge release voltage: 2.0 V to 4.6 V
  Accuracy ±24 mV (2.0 V≦Vcl＜2.4 V) , Accuracy ±1.0% (2.4 V≦Vcl≦4.6 V)

• Built-in Nch transistor with ON resistance of 5 Ω typ. between the CB pin and the VSS pin

• Current consumption

  2.0 μA max. (Ta = +25°C)

• Delay times are generated only by an internal circuit (External capacitors are unnecessary).

• CO pin output form and output logic are selectable

  CMOS output Active “H”, active “L”

  Nch open-drain output Active “H”, active “L”

• Switchable to power-saving mode by using the CE pin

• Operation temperature range

  Ta = −40°C to +85°C

• Lead-free (Sn 100%), halogen-free

Applications

• Rechargeable battery module

• Capacitor module

Battery Protection IC with Alarm Function for 1-Cell Pack S-82U1A Series

Describe：

This IC is a protection IC for lithium-ion / lithium polymer rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent. By using an external overcurrent detection resistor, This IC realizes high-accuracy overcurrent protection with less effect from temperature change. The alarm function enables the voltage detection immediately before the overcharge detection.

Features：

• High-accuracy voltage detection circuit

 Overcharge detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Overcharge release voltage 3.100 V to 4.800 V*1 Accuracy ±50 mV

 Alarm detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Alarm hysteresis voltage 0 V, 0.010 V, 0.020 V Accuracy ±5 mV

 Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV

 Overdischarge release voltage 2.000 V to 3.400 V*2 Accuracy ±75 mV

 Discharge overcurrent 1 detection voltage 3 mV to 100 mV (0.5 mV step) Accuracy ±1 mV

 Discharge overcurrent 2 detection voltage 10 mV to 100 mV (1 mV step) Accuracy ±2 mV

 Load short-circuiting detection voltage 20 mV to 100 mV (1 mV step) Accuracy ±4.5 mV

 Charge overcurrent detection voltage −100 mV to −3 mV (0.5 mV step) Accuracy ±1 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Discharge overcurrent control function

 Release condition of discharge overcurrent status: Load disconnection

 Release voltage of discharge overcurrent status: Discharge overcurrent release voltage (VRIOV) = VDD × 0.8 (typ.)

• 0 V battery charge: Enabled, inhibited

• Power-down function: Available, unavailable

• Alarm function

 AO pin output logic: Active "H", active "L"

 AO pin output form: CMOS output, Nch open-drain output

 Connection when AO pin = "L": VSS pin, VM pin

 Charge control function: Available, unavailable

• High-withstand voltage: VM pin, CO pin and AO pin: Absolute maximum rating 28 V

• Wide operation temperature range: Ta = −40°C to +85°C

• Low current consumption

 During operation: 2.5 μA typ., 5.0 μA max. (Ta = +25°C)

 During power-down: 50 nA max. (Ta = +25°C)

 During overdischarge: 0.5 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications：

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC with Alarm Function for 1-Cell Pack S-82L1A Series

Describe:

The S-82L1A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent. The alarm function enables the voltage detection immediately before the overcharge detection.

Features:

• High-accuracy voltage detection circuit

 Overcharge detection voltage 4.200 V to 4.600 V (5 mV step) Accuracy ±12 mV

 Overcharge release voltage 4.000 V to 4.600 V*1 Accuracy ±50 mV

 Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV

 Overdischarge release voltage 2.000 V to 3.400 V*2 Accuracy ±100 mV

 Alarm status detection voltage 4.200 V to 4.600 V (5 mV step) Accuracy ±12 mV

 Discharge overcurrent detection voltage 0.003 V to 0.100 V (1 mV step) Accuracy ±3 mV

 Load short-circuiting detection voltage 0.010 V to 0.100 V (5 mV step) Accuracy ±7 mV

 Charge overcurrent detection voltage −0.100 V to −0.003 V (1 mV step) Accuracy ±3 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Discharge overcurrent control function

 Release condition of discharge overcurrent status: Load disconnection

 Release voltage of discharge overcurrent status: VRIOV = VDD × 0.8 (typ.)

• 0 V battery charge: Enabled, inhibited

• Power-down function: Available, unavailable

• Alarm function

 AO pin output logic: Active "L"

 AO pin output form: CMOS output, Nch open-drain output

 Connection when AO pin = "L": VSS pin, VM pin

• High-withstand voltage: VM pin, CO pin and AO pin: Absolute maximum rating 28 V

• Wide operation temperature range: Ta = −40°C to +85°C

• Low current consumption

 During operation: 800 nA typ., 1500 nA max. (Ta = +25°C)

 During power-down: 50 nA max. (Ta = +25°C)

 During overdischarge: 500 nA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications:

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC with Alarm Function for 1-Cell Pack S-82T1A Series

Describe:

      This IC is a protection IC for lithium-ion / lithium polymer rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent. By using an external overcurrent detection resistor, This IC realizes high-accuracy overcurrent protection with less effect from temperature change. The alarm function enables the voltage detection immediately before the overcharge detection.

Features:

• High-accuracy voltage detection circuit

 Overcharge detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Overcharge release voltage 3.100 V to 4.800 V*1 Accuracy ±50 mV

 Alarm detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Alarm hysteresis voltage 0 V, 0.010 V, 0.020 V Accuracy ±5 mV

 Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV

 Overdischarge release voltage 2.000 V to 3.400 V*2 Accuracy ±75 mV

 Discharge overcurrent 1 detection voltage 3 mV to 100 mV (0.5 mV step) Accuracy ±1.5 mV

 Discharge overcurrent 2 detection voltage 10 mV to 100 mV (1 mV step) Accuracy ±3 mV

 Load short-circuiting detection voltage 20 mV to 100 mV (1 mV step) Accuracy ±5 mV

 Charge overcurrent detection voltage −100 mV to −3 mV (0.5 mV step) Accuracy ±1.5 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Discharge overcurrent control function

 Release condition of discharge overcurrent status: Load disconnection

 Release voltage of discharge overcurrent status: Discharge overcurrent release voltage (VRIOV) = VDD × 0.8 (typ.)

• 0 V battery charge: Enabled, inhibited

• Power-down function: Available, unavailable

• Alarm function

 AO pin output logic: Active "H", active "L"

 AO pin output form: CMOS output, Nch open-drain output

 Connection when AO pin = "L": VSS pin, VM pin

 Charge control function: Available, unavailable

• High-withstand voltage: VM pin, CO pin and AO pin: Absolute maximum rating 28 V

• Wide operation temperature range: Ta = −40°C to +85°C

• Low current consumption

 During operation: 2.5 μA typ., 5.0 μA max. (Ta = +25°C)

 During power-down: 50 nA max. (Ta = +25°C)

 During overdischarge: 0.5 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

 Applications:

• Lithium-ion rechargeable battery pack

• Lithium polymer rechargeable battery pack

Battery Protection IC with Alarm Function for 1-Cell Pack S-82V1A Series

Describe:

This IC is a protection IC for lithium-ion / lithium polymer rechargeable batteries, which includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent. By using an external overcurrent detection resistor, This IC realizes high-accuracy overcurrent protection with less effect from temperature change. The alarm function enables the voltage detection immediately before the overcharge detection.

Features:

• High-accuracy voltage detection circuit

 Overcharge detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Overcharge release voltage 3.100 V to 4.800 V*1 Accuracy ±50 mV

 Alarm detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±12 mV

 Alarm hysteresis voltage 0 V, 0.010 V, 0.020 V Accuracy ±5 mV

 Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV

 Overdischarge release voltage 2.000 V to 3.400 V*2 Accuracy ±75 mV

 Discharge overcurrent 1 detection voltage 3 mV to 100 mV (0.25 mV step) Accuracy ±0.75 mV

 Discharge overcurrent 2 detection voltage 6 mV to 100 mV (0.5 mV step) Accuracy ±1.5 mV

 Load short-circuiting detection voltage 20 mV to 100 mV (1 mV step) Accuracy ±4 mV

 Charge overcurrent detection voltage −100 mV to −3 mV (0.25 mV step) Accuracy ±0.75 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Discharge overcurrent control function

 Release condition of discharge overcurrent status: Load disconnection

 Release voltage of discharge overcurrent status: Discharge overcurrent release voltage (VRIOV) = VDD × 0.8 (typ.)

• 0 V battery charge: Enabled, inhibited

• Power-down function: Available, unavailable

• Alarm function

 AO pin output logic: Active "H", active "L"

 AO pin output form: CMOS output, Nch open-drain output

 Connection when AO pin = "L": VSS pin, VM pin

 Charge control function: Available, unavailable

• High-withstand voltage: VM pin, CO pin and AO pin: Absolute maximum rating 28 V

• Wide operation temperature range: Ta = −40°C to +85°C

• Low current consumption

 During operation: 2.5 μA typ., 5.0 μA max. (Ta = +25°C)

 During power-down: 50 nA max. (Ta = +25°C)

 During overdischarge: 0.5 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications:

Lithium-ion rechargeable battery pack

Lithium polymer rechargeable battery pack

Battery Protection IC for 4-serial to 5-serial Cell Pack S-82C4A/5A Series

Describe:

This IC is a protection IC for lithium-ion rechargeable batteries, which includes temperature protection circuits, high-accuracy voltage detection circuits, and delay circuits. Temperature protection is possible by connecting an NTC thermistor to the dedicated connection pin. It is suitable for protecting 4-serial or 5-serial cell lithium-ion rechargeable battery packs from overcharge, overdischarge, and overcurrent.

Features:

• High-accuracy voltage detection for each cell

Overcharge detection voltage n 3.900 V to 4.500 V (25 mV step) Accuracy ±20 mV

Overcharge release voltage n 3.500 V to 4.500 V*1 Accuracy ±50 mV

Overdischarge detection voltage n 2.000 V to 3.200 V (100 mV step) Accuracy ±50 mV

Overdischarge release voltage n 2.000 V to 3.400 V*2 Accuracy ±100 mV

• Three-level discharge overcurrent detection

Discharge overcurrent 1 detection voltage 10 mV to 200 mV (5 mV step) Accuracy ±5 mV

Discharge overcurrent 2 detection voltage 20 mV to 300 mV (5 mV step) Accuracy ±10 mV

Load short-circuiting detection voltage 50 mV to 400 mV (10 mV step) Accuracy ±20 mV

• Charge overcurrent detection

Charge overcurrent detection voltage −200 mV to −10 mV (5 mV step) Accuracy ±5 mV

• Discharge overcurrent 1 detection delay time is settable by an external capacitor (The other delay time are internally fixed)

• Power saving control by a control pin

• 0 V battery charge: Enabled, inhibited

• Power-down function: Available, unavailable

• Release condition of discharge overcurrent status: Load disconnection, charger connection

• Output voltage of CO and DO pin is limited to VC2 pin voltage. (S-82C5A Series)

• Detecting temperature is possible with connecting an NTC thermistor at four different points of high-and-low temperatures during charging and of high-and-low temperatures during charge-discharge.

High temperature charge-discharge inhibition temperature +40°C to +85°C (1°C step) Accuracy ±3°C*3

High temperature charge inhibition temperature +40°C to +85°C (1°C step) Accuracy ±3°C*3

Low temperature charge inhibition temperature −40°C to +10°C (1°C step) Accuracy ±3°C*3

Low temperature charge-discharge inhibition temperature −40°C to +10°C (1°C step) Accuracy ±3°C*3

• High-withstand voltage: Absolute maximum rating 28.0 V

• Wide operating voltage range: 5.0 V to 24.0 V

• Wide operation temperature range: Ta = −40°C to +85°C

• Low current consumption

During operation: 5.0 μA typ., 10 μA max. (Ta = +25°C)

During power-down: 0.1 μA max. (Ta = +25°C)

During power-saving: 0.1 μA max. (Ta = +25°C)

• Lead-free (Sn 100%), halogen-free

Applications:

• Lithium-ion rechargeable battery packs

Battery Protection IC with Power-saving Function for 1-Cell Pack S-82B1B Series

Describe:

The S-82B1B Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes high-accuracy voltage detection circuits and delay circuits. It is suitable for protecting 1-cell lithium-ion / lithium polymer rechargeable battery packs from overcharge, overdischarge, and overcurrent.

Features:

• High-accuracy voltage detection circuit

Overcharge detection voltage 3.500 V to 4.600 V (5 mV step)                       Accuracy +20 mV

Overcharge release voltage 3.100 V to 4.600 V^*1                                            Accuracy +50 mV

Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step)                Accuracy +50 mV

Overdischarge release voltage 2.000 V to 3.400 V^*2                                       Accuracy +100 mV

Discharge overcurrent detection voltage 1 0.010 V to 0.100 V (1 mV step)   Accuracy +3 mV

Discharge overcurrent detection voltage 2 0.030 V to 0.200 V (1 mV step)   Accuracy +5 mV

Load short-circuiting detection voltage 0.050 V to 0.500 V (5 mV step)        Accuracy +20 mV

Charge overcurrent detection voltage -0.100 V to -0.010 V (1 mV step)       Accuracy +3 mV

• Detection delay times are generated only by an internal circuit (external capacitors are unnecessary).

• Power-saving function

PS pin control logic is selectable: Active "H", active "L"

PS pin internal resistance connection is selectable: Pull-up, pull-down

PS pin internal resistance value is selectable: 1.0 MΩ, 2.0 MΩ, 3.0 MΩ, 4.0 MΩ, 5.0 MΩ
