200 mA Low-Side Switch for 4 V to 36 V with Input/Output Decoupling

Features

• 36 V lowside switch/level shifter

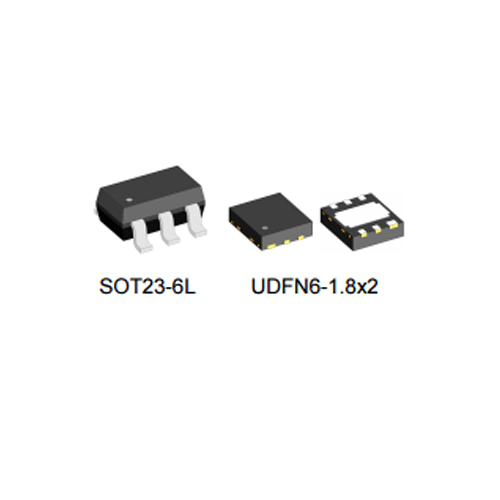

• Decoupling of input and output voltages (SOT23-6L) permits control by 5 V logic

• 200 mA of output current

• Short-circuit protected

• Output with an active freewheeling circuit

• On-chip over-temperature protection

• 4 to 36 V input voltage range

• Input with hysteresis

• Wide temperature range of -40 to 120 °C

Applications

• Lowside switch for industrial applications, such as relays, inductive proximity sensors and light barriers

200 mA High-Side Switch and Level Shift for 4 V to 36 V with Input/Output Decoupling

Features

• 36 V highside switch/level shifter

• P-channel output driver without charge pump for short activation time

• Decoupling of input and output voltages (SOT23-6L) permits control by 5 V logic

• 200 mA of output current

• Short-circuit protected

• Output with an active freewheeling circuit

• On-chip over-temperature protection

• 4 to 36 V input voltage range

• Input with hysteresis

• Wide temperature range of -40 to 120 °C

Applications

• Highside switch for industrial applications, such as relays, inductive proximity sensors and light barriers




Universal Digital Sensor Output Driver

Features

• Configurable high-side, low-side and push-pull operation

• Current limited output (< 450 mA)

• Reverse polarity protection

• 150 mA output current

• Wide supply voltage range from 8 to 30 V

• Shutdown with overtemperature

• Integrated free-wheeling diode for inductive loads

• Sensor supply voltage output of 5 V, 10 mA

Applications

• Digital sensors

• Light barriers

• Proximity switches

Universal Digital Sensor Output Driver

Features

• Configurable high-side, low-side and push-pull operation

• Current limited output (< 450 mA)

• Reverse polarity protection

• 150 mA output current

• Wide supply voltage range from 8 to 30 V

• 5 μs input filter for spike suppression

• Shutdown with overtemperature

• Integrated free-wheeling diode for inductive loads

• Sensor supply voltage output of 3.3 V, 10 mA

Applications

• Digital sensors

• Light barriers

• Proximity switches

Universal Digital Sensor Output Driver with Feedback Channel

Features

• Configurable high-side, low-side and push-pull operation

• Current limited output (< 450 mA)

• Reverse polarity protection

• 200 mA output current

• 5 μs input filter for spike suppression

• I/O-Link compliant

• Wide supply voltage range from 8 to 30 V

• Shutdown with overtemperature

• Integrated free-wheeling diode for inductive loads

• Sensor supply voltage output of 5 V, 10 mA

Applications

• Digital sensors

• Light barriers

• Proximity switches

8-/12-Fold Fail-Safe Logic N-FET Driver

Features

• 8-/12-fold level shift to 5 V output voltage

• Secure low-state of the output with single faults

• Schmitt Trigger inputs with two-stage pull-down current for enhanced noise immunity with limited power dissipation

• Inputs TTL and CMOS compatible (1.8 to 3.3 to 5 V)

• Current limited and short-circuit proof push-pull outputs

• Push-pull current source to drive FET transistors

• Voltage-proof outputs up to 18 V (pulsed)

• Ground and supply voltage monitor

• iC-MFL QFN24 is qualified for typical SIL/ASIL applications according to AEC Q100

Applications

• Operation of 5 V Logic Level N-FETs out of 3.3 V systems

8-Fold Fail-Safe N-FET Driver with a Level Shift of up to 40 V

Features

• 8-fold level shift up to 40 V output voltage

• Safe low output state with single errors

• Schmitt Trigger inputs with two-stage pull-down current for enhanced noise immunity with limited power dissipation

• Inputs TTL and CMOS compatible (1.8 to 3.3 to 5 V)

• Input Voltage up to 40 V

• Current limited and short-circuit proof push-pull outputs

• Level shift configurable to 5 V, 10 V or supply voltage

• Push-pull current source to drive FET transistors

• Ground and supply voltage monitor

Applications

• Operation of N-FETs from 1.8 V, 3.3 V or 5 V systems

8-Fold Fail-Safe P-FET Driver with a Level Shift of up to 40 V

Features

• 8-fold level shift up to 40 V output voltage

• Safe high output state with single errors

• Schmitt Trigger inputs with two-stage pull-down current for enhanced noise immunity with limited power dissipation

• Inputs TTL and CMOS compatible

• Input Voltage up to 40 V

• Current limited and short-circuit proof push-pull outputs

• Level shift configurable to 5 V, 10 V or supply voltage

• Push-pull current source to drive FET transistors

• Ground and supply voltage monitor

Applications

• Operation of P-FETs from 1.8 V, 3.3 V or 5 V systems

3-Channel Differential Line Driver with Integrated Impedance Adaptation

Features

• 6 current-limited and short-circuit-proof push-pull drivers


• Differential 3-channel operation

• Power supply range from 4 to 40 V

• Integrated 30 to 140 Ohm line adaptation

• Low output saturation voltage

• Compatible with TIA/EIA standard RS-422

• Tristate switching enables use in buses

• Short switching times and high slew rates

• Schmitt trigger inputs compatible with TTL and CMOS levels, voltage-proof up to 40 V

• Thermal shutdown

Applications

• 24 V control engineering

• Line driver in a PLC environment

• Linear and rotary encoders

• MR sensor systems

Quad Differential Line Driver, Pin-Compatible with xx2068

Features

• Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz

• Pin-compatible with xx2068

• Integrated line adaptation for high signal quality at 24V

• Moderate slew rate reduces EMI

• High driving capability of typically 200mA at 24V

• Output saturation of just 0.3 V at 40 mAdc

• Tristate function with excessive temperature

• Error messaging with excessive temperature and undervoltage

• TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V

• Tristate function for bus applications

• Integrated 5 V voltage regulator for 5mA

• 4.5 to 35 V single supply operation with low static power dissipation

Applications

• Line drivers for 24 V control engineering

• Linear scales and encoders

• Sensor systems

Quad Differential Line Driver, Pin-Compatible with xx7272 and 26LS31

Features

• Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz

• Pin-compatibel with 26LS31, xx7272

• Integrated line adaptation for high signal quality at 24V

• Moderate slew rate reduces EMI

• High driving capability of typically 200mA at 24V

• Output saturation of just 0.3 V at 40 mAdc

• Excessive temperature shutdown

• TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V

• Tristate function for bus applications

• 4.5 to 35 V single supply operation with low static power dissipation

Applications

• Line drivers for 24 V control engineering

• Linear scales and encoders

• Sensor systems

Triple Differential Line Driver

Features

• Complementary short-circuit-proof push-pull driver stages for RS422 and 24 V applications up to 2MHz

• SO14N package pin-compatible to ET9600

• Integrated line adaptation for high signal quality at 24V

• Moderate slew rate reduces EMI

• High driving capability of typically 200mA at 24V

• Output saturation of just 0.3 V at 40 mAdc

• Tristate function with excessive temperature

• TTL-/CMOS-compatible Schmitt trigger inputs, voltage-proof to 40 V

• Tristate function for bus applications

• 50 mA LED driver with ISET input for current control

• 4.5 to 35 V single supply operation with low static power dissipation

Applications

• Line drivers for 24 V control engineering

• Linear scales and encoders

• Sensor systems

6-Chan. RS-422 Encoder Link - Line Driver/Receiver

Features

• Versatile 3+3 channel RS-422 line driver/receiver

• Pin-configured as driver (6x) or driver/receiver (3x/3x or 4x/2x)

• Supports BiSS bus structure and BiSS bus loopback

• Unique Encoder Link mode: analog switches to bridge 9 lines

• Differential short-circuit-proof push-pull outputs

• Driving capability of 30 mA typ. at 3 V

• Reduced EMI due to output current limitation

• Output shutdown with undervoltage and overtemperature

• Suits various line impedances, allows 100 Ohm termination

• Up to 10 MHz input/output frequency

• Reverse-polarity-proof operation from 3.0 V to 5.5 V

Applications

• Differential cable driver

• Motion control encoders

• Control engineering

• Sensor bus structures with BiSS

3-Channel Differential Line Driver with Reduced Power Dissipation

Features

• 6 current-limited and short-circuit-proof push-pull drivers

• Differential 3-channel operation

• Power supply range from 4 to 40 V

• Integrated 30 to 140 Ohm line adaptation

• 200 mA output current (at VB = 24 V)

• Low output saturation voltage (< 0.4 V at 30 mA)

• Compatible with TIA/EIA standard RS-422

• Tristate switching enables use in buses

• Short switching times and high slew rates

• Schmitt trigger inputs compatible with TTL and CMOS levels, voltage-proof up to 40 V

• Thermal shutdown

• Low static power dissipation, Dynamic power dissipation reduced with iC-xSwitch

Applications

• Line driver for 24 V control engineering

• Linear scales and rotary encoders

• MR sensor systems

3-Channel Differential Line Driver with Complementary 24 V Outputs

Features

• Driver supply voltage of 4.5 to 30 V

• Push-pull driver current-limited and short-circuit-proof

• Programmable driving capability of 30 mA or 100 mA

• Integrated freewheeling diodes

• TTL-/CMOS-compatible hysteresis inputs with pull-up current sources

• Selectable input reference level

• Thermal shutdown

Applications

• Line driver for 24 V control engineering

3-Channel 75 Ohm Line Driver for RS422 and 24 V Applications

Features

• Driver supply voltage of 4.5 to 30 V

• Push-pull driver current-limited and short-circuit-proof

• Guaranteed driving capability of 30 mA

• Integrated cable adaptation with thermal protection

• Tri-state and invert mode

• TTL-/CMOS-compatible hysteresis inputs with pull-up sources

• Meets EIA standard RS422 (with two iCs used)

• Error output with thermal shutdown and low voltage

Applications

• 24 V signal transfer

• Line driver in a PLC environment

32 Bit Serial Input Latched Push/Pull Driver

Features

• Pin compatible with Allegro A6818

• 32 bit shift register

• Shift register with data latches and control circuitry

• 36V output drivers with ±25 mA output current

• Drivers shut down with over temperature

• Error (NERR) signal with Tristate Output

• Direct interfacing with microprocessor based systems

• Integrated free-wheeling diode for inductive loads

• Typical serial data input rates up to 33 MHz

Applications

• Driving bi-stable relays

• Peripheral power driver applications

PWM Relay/Solenoid Driver for a Wide Operating Voltage Range (1 A)

Features

• Current control for inductive actuators at 24 V (10 to 36 V)

• High efficient current control up to 1 A

• Switching with power saving and reduced power dissipation

• Individual setting of energising and hold current

• Contact conserving switching of relays synchronous to the mains

• Monitoring of coil current, supply voltage and temperature

• Shutdown with overtemperature and undervoltage

• Status indication via LED or logic output

• Fast demagnetising due to 15 V countervoltage

• High PWM frequency with frequency spreading for low EMI

• Energising time of 50 ms prolongable with external capacitor

Applications

• PWM driver for inductive loads (e.g. relays, electrovalves)

• Relay low-/high-side switch

PWM Relay/Solenoid Driver (100 mA)

Features

• Current control for inductive actuators at 24 V (10 to 36 V)

• High efficient current control up to 100 mA

• Switching with power saving and reduced power dissipation

• Individual setting of energising and hold current

• Contact conserving switching of relays synchronous to the mains

• Monitoring of coil current, supply voltage and temperature

• Shutdown with overtemperature and undervoltage

• Status indication via LED or logic output

• Fast demagnetising due to 15 V countervoltage

Applications

• PWM driver for inductive loads (e.g. relays, electrovalves)

• Relay low-/high-side switch

Power-Saving PWM Relay/Solenoid Driver

Features

• Reduces the power consumption of valves and relays by 50%

• Adjustable PWM current regulation at 10 to 45 V

• Up to 300 mA startup current, automatically reduced in hold mode

• Coil current monitored during startup mode, detection of load breakage and voltage errors

• LED output for status and error message

• Active, fast coil demagnetizing

• Shutdown with excessive temperature and low voltage

Applications

• PWM driver for inductive loads (e.g. relays, electrovalves)

• Relay low-/high-side switch
