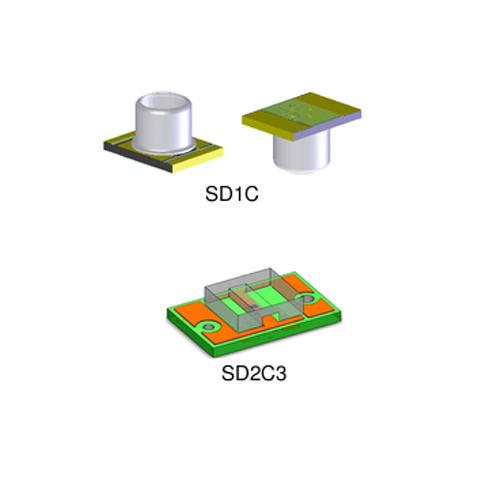

850 nm 红外线 LED 用于高分辨率光电编码器, 带透镜或玻璃平板窗

Features

• Emission peak at 850 nm matched to silicon sensors

• Optimized irradiance pattern

• High temperature range -40 to 125 °C

• High optical output power

• Fast switching speed

• Packages suitable for SMT mounting

Applications

• Illumination for high resolution optical encoder

• Modulated light barriers

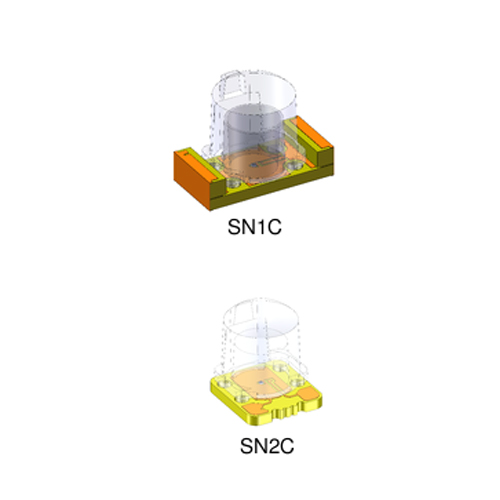

850 nm 红外线 LED 用于高品质大面积照明高分辨率光电编码器, 带塑料透镜

Features

• Emission peak at 850 nm matched to silicon sensors

• Optimized irradiance pattern

• High temperature range -40 to 125 °C

• High optical output power

• Fast switching speed

• Packages suitable for SMT mounting

Applications

• Illumination for high resolution optical encoder

• Modulated light barriers

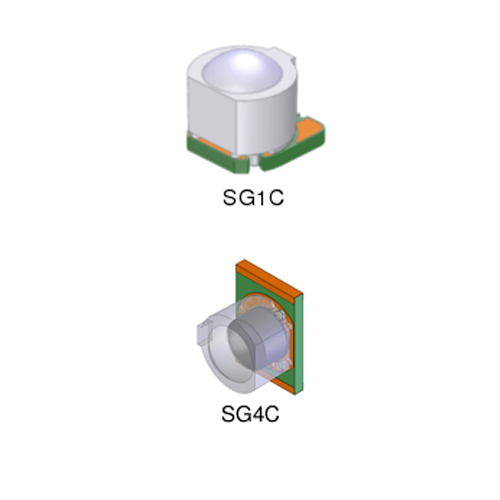

850 nm 红外线 LED 用于高质量大面积照明高分辨率光电编码器, 带塑料透镜

Features

• Emission peak at 850 nm matched to silicon sensors

• Optimized 6 mm irradiance pattern

• High temperature range -40 to 125 °C

• High optical output power

• Fast switching speed

• Packages suitable for SMT mounting

Applications

• Illumination for high resolution optical encoder

• Modulated light barriers

460 nm 蓝光 LED - (新)

Features

• Point Source LED

• High brightness Ultra Red LED

• Glass cover

• High temperature range -40 to 125 °C

• SMD 1206 LED Package

Applications

• Illumination for high resolution optical encoders, PSDs and optical line-scanners

• Modulated light barriers

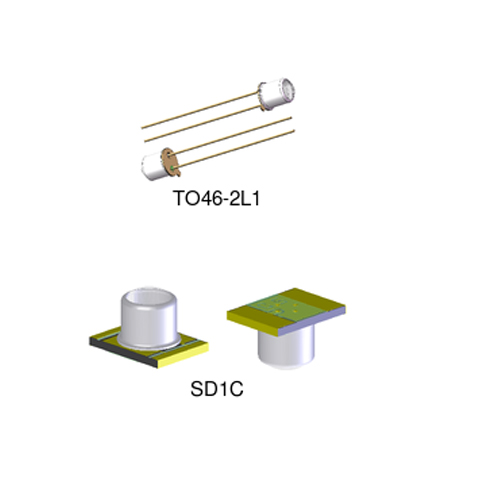

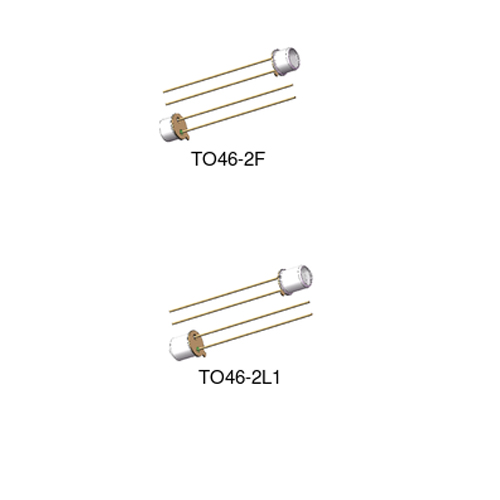

850 nm 红外线 LED 用于高分辨率光电编码器, 带透镜或玻璃平板窗

Features

• Emission peak at 850 nm matched to silicon sensors

• High temperature range -40 to 125 °C

• High optical output power

• Fast switching speed

• TO-46 package (flat or lens window) for high reliability

Applications

• Illumination for high resolution optical encoder

• Modulated light barriers
